Product Details
＋

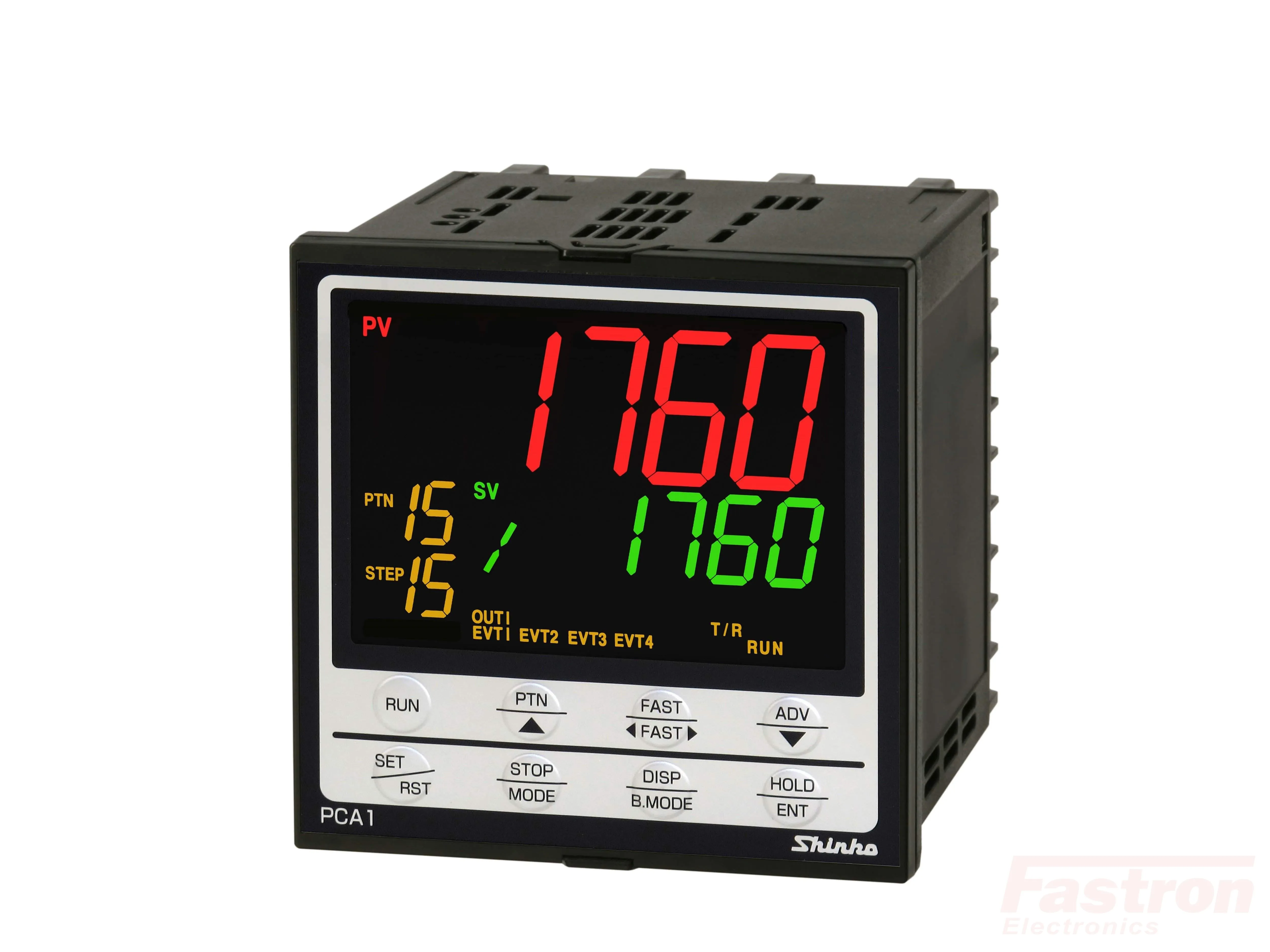

Shinko PCA1R10010 Series Digital Indicating Controllers
- Program control, Fixed Point Control function are standard features
- 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response)
- Time Signal Output
- Drip-proof / Dust-proof IP66 (front panel only)
- 16-step, 16 Patterns with Interlinking pattern is a standard feature
- UL/CSA Approved
- Each unit needs just 60 mm depth panel space
- EC Compliant ()
Applications
- Kiln Controller
- Timed Heatsink Process
- Food Industry
- Oven Controller
- Furnace Controller
Specification
| Shinko Part Number | PCA1R10010 |
| Control Output | Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) |
| Number of Steps | 16 |
| Number of Patterns | 16 |
| Interlinkable | Yes |
| Input | Multirange (refer to datasheet) |
| Option 1 | 4-20mA Retransmission Output |
| Option 2 | None |
| Mounting Style | 96 x 96mm Panel Mount |
| Load Voltage Range | 24VAC/DC |
| Termination Style | Screw |
| Weight | 270g |
| Factory Pack Qty | 1 |
| ROHS | Yes |
| UL | Yes |
| CE | Yes |
Datasheet
