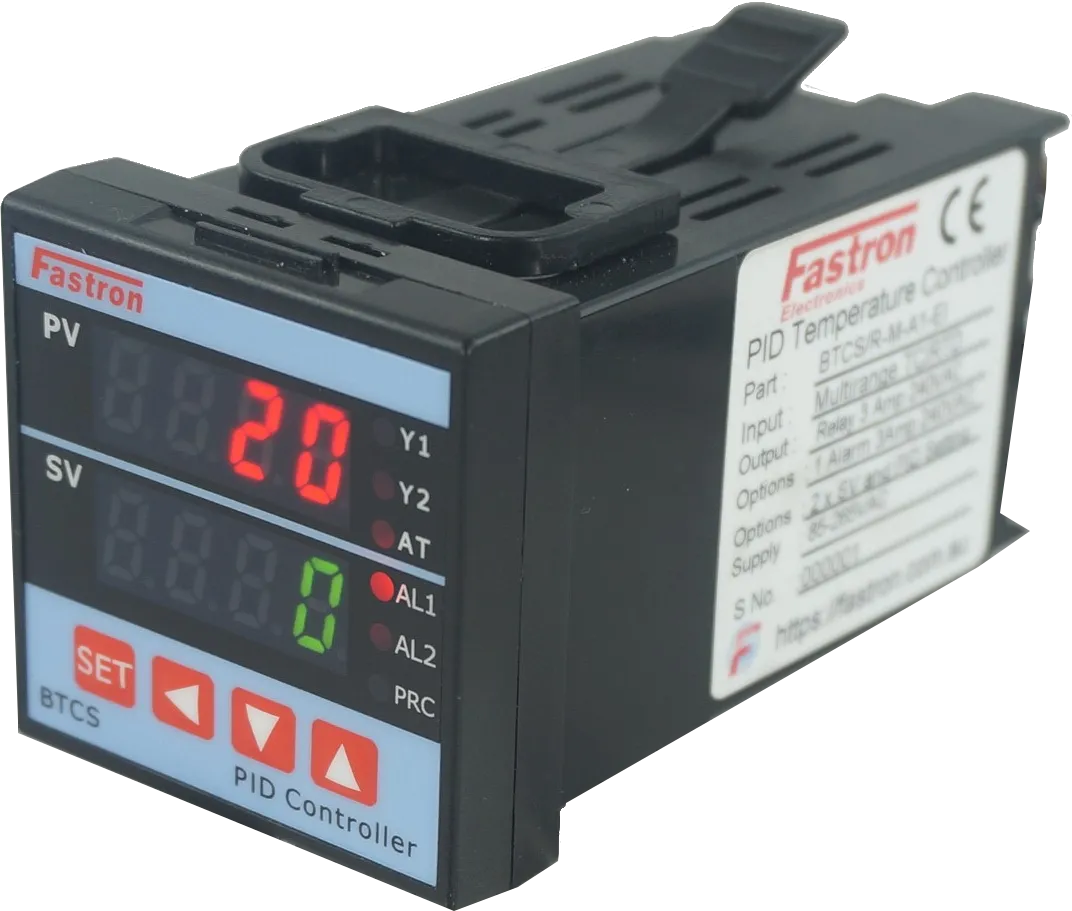

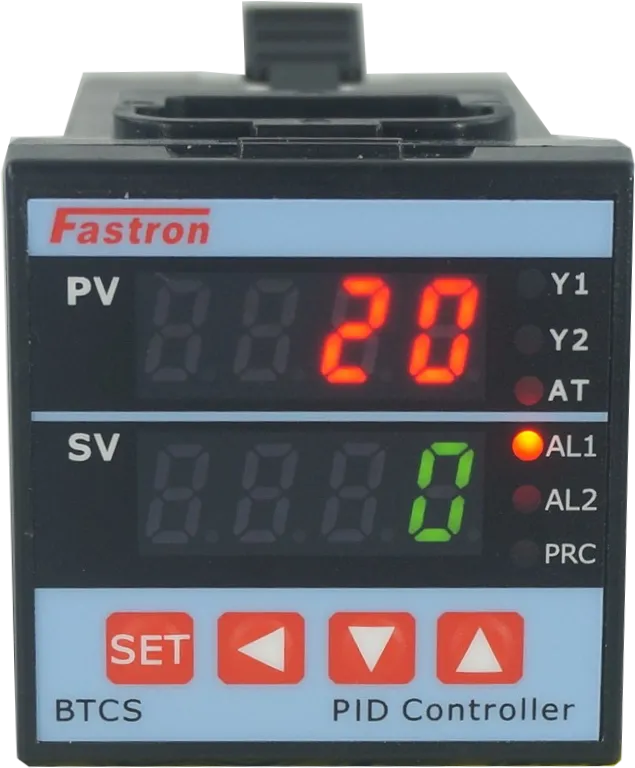

Fastron Electronics BTCS/S-M-A2, PID Controller 48x48mm, 85-265VAC, SSR output 2 Alarms, Multirange TC/RTD/SSR 24VDC @ 30mA Input

  • 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response)
  • Dust-proof IP56 (front panel only)
  • Optional 32 Step pattern (for SV and time) is a standard feature
  • CE Approved
  • Each unit needs just 80 mm depth panel space
    Specification
    Fastron Part Number BTCS/S-M-A2
    Control Output SSR 24VDC @ 30mA
    Input Multirange SSR 24VDC @ 30mA/RTD/Thermocouple (Optional Linear Voltage/Current other than SSR 24VDC @ 30mA Refer to datasheet)
    Option 1 2nd Alarm
    Option 2 None
    Mounting Style 48x48mm Panel Mount
    Load Voltage Range 100-240VAC
    Termination Style Screw
    Weight 250g
    Factory Pack Qty 1
    CE Yes

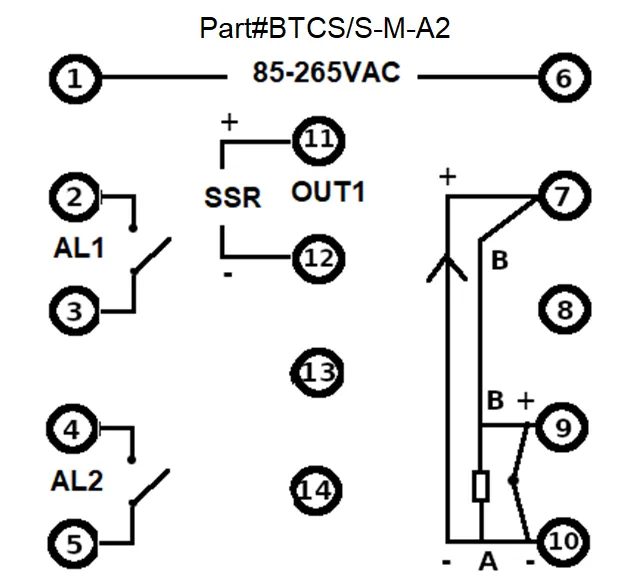

    Datasheet
    BTCS/S-M-A2, PID Controller 48x48mm, 85-265VAC, SSR output 2 Alarms, Multirange TC/RTD/SSR 24VDC @ 30mA Input
    • Thermocouple
    • RTDPt100
    • 420mA

    $ 60.70

    $ 46.69
