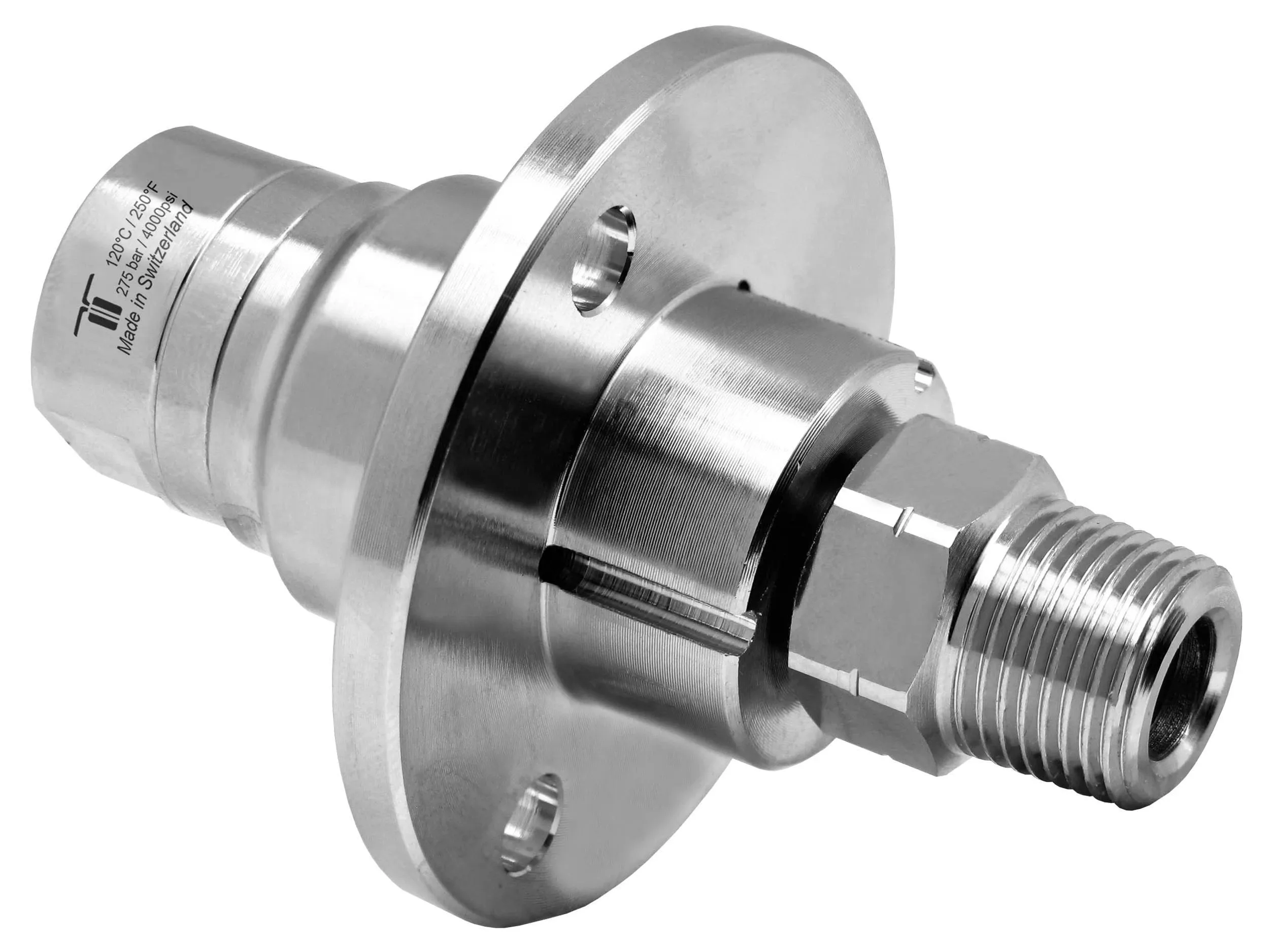

Surface cleaners, parts washer, tire cleaners, high pressure, self rotating applications

• Flange for easy installation
• Seal failure warning, through week holes
• Maintenance free
• Carbide seal systems

G1 1/4”NPTF, G2 3/8”M, NW 1/4”, SW1 0.87, SW2 0.75, L1 1.49, L2 0.47, Weight 11.0 oz

Technical data

• Pressure: 4000 psi(27.5 MPa)
• Temperature: 4000 psi(27.5 MPa)
• Temperature: 250 °F (max. 2’000 rpm)
• RPM: max. 2’000 rpm)
• Body: DYF: brass, nickel plated, DYFI: Stainless steel
• Inner part: Stainless steel
• Seal: carbide
• Bearing: 2x radial ball bearings, 1x thrust ball bearing
• Throughput: pH 3-12
• Medium: filtered 10 microns, compressed air (290 psi)
