Dollar for dollar, the GR Lite is the best way to lift your vehicle!

Please note, all Flatout Coilovers are hand built and require a build time of approximately 4 weeks from the time of order. Quality matters!

Fitment Information

• Toyota Highlander 1st Gen XU20 (2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007)

Specs & Features

• Top Mount: Camber Plates or OEM Hybrid
• Spring Rates: Comfort / Overload
• Designed for light duty offroad/ lift
• Provides up to 2" lift over OEM height
• Front Travel 2" Over OEM
• Rear Travel 2" Over OEM
• Upright shocks
• Radial bearing on Front Assembly
• Magnitude Linear Rate Springs
• Highly Polished Electro-Plated Nickel Cartridge
• Rebuildable Shock
• CNC Machined High-flow Aluminum Piston
• Stainless Steel Shims
• Light Weight Synthetic Shock Oil
• Rebound Adjustable : 20 pts

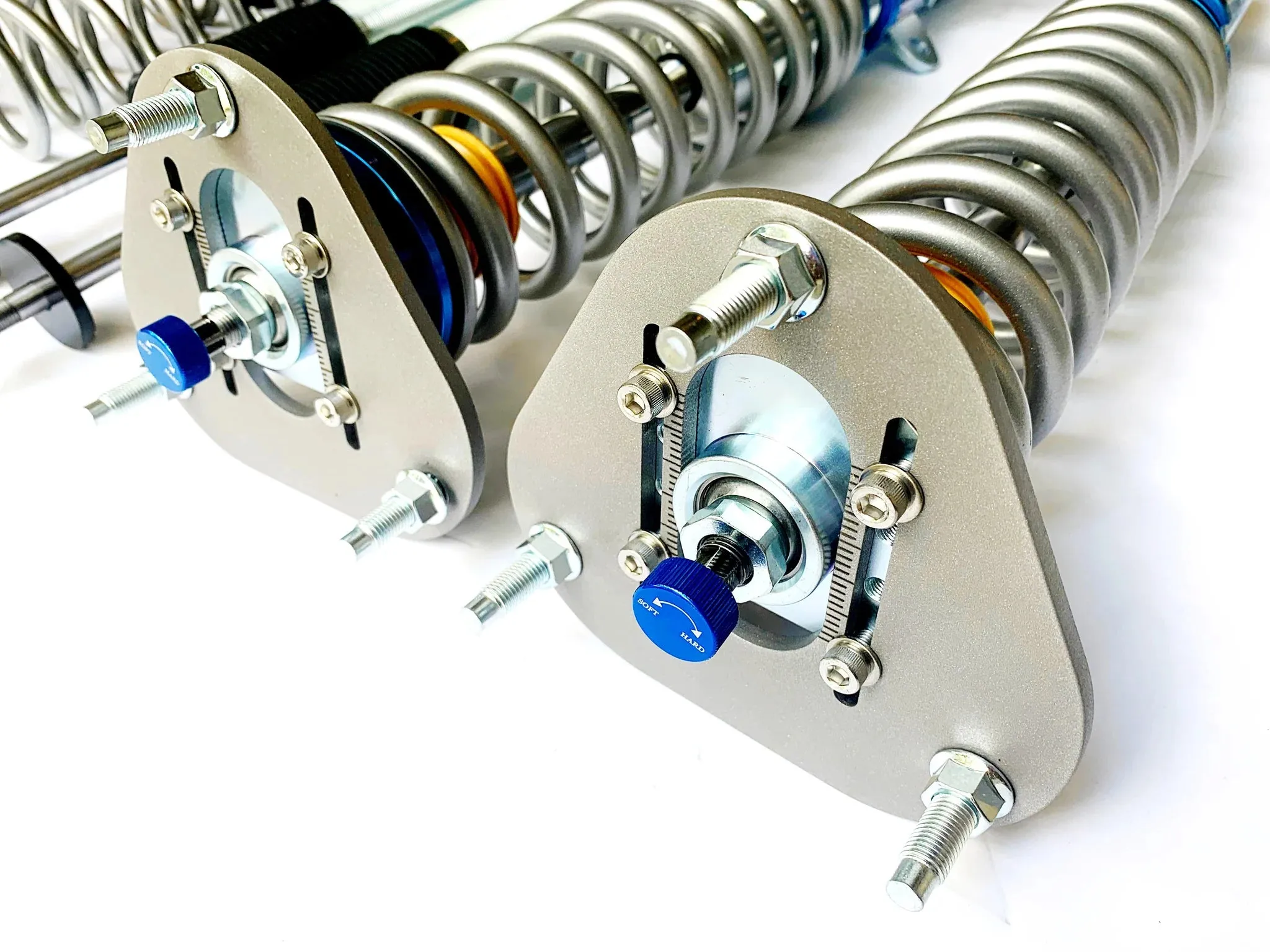

• Camber Adjustable mounts standard
• Re-use rear shock top mount

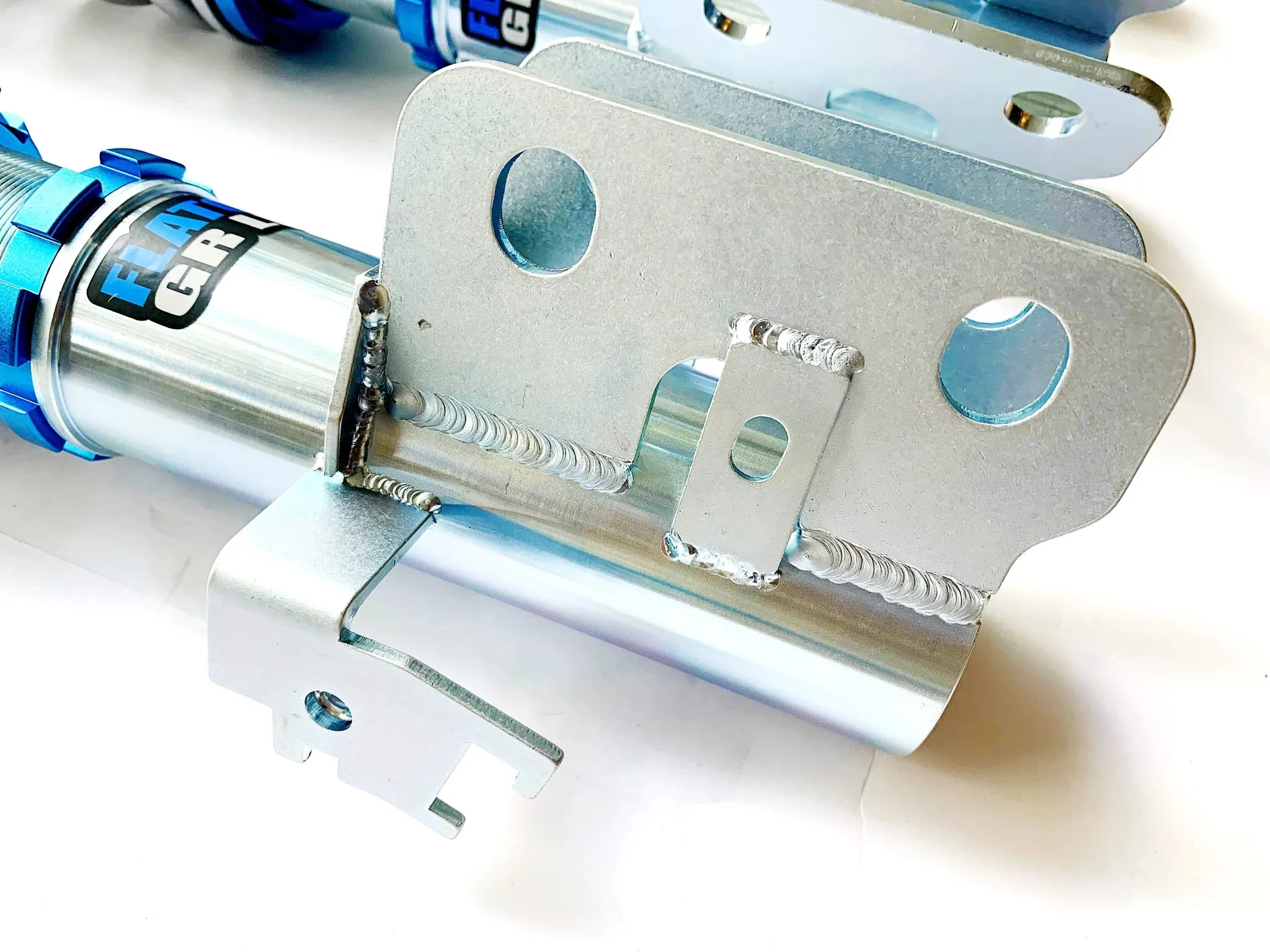

• Brackets for Sensor Lines on shock body
• Individual Parts Available
• Approx 3wks to hand assemble and ship

Product Description

Dollar for dollar, the GR Lite is the best way to lift your vehicle. Everything you need is included, and setup is super easy. The Flatout Suspension GR Lite lineup was created solely for customers that don’t need the brute strength and toughness of a rally-prepped suspension, but want to achieve approximately 2 to 3 inches of lift and partake in some light duty off-road adventures. These are the perfect alternative to a typical spring/ strut (or shock) combo that offers no adjustment, and is certainly a better option than adding strut spacers to your worn OEM suspension. Our GR Lite requires no additional parts to achieve a 2" lift. Install, adjust, done.

Q: Can I get different spring rates as I carry a lot of gear and tow?
A: Absolutely! Just tell us what rate you'd like in the order notes

Q: Can the shocks be rebuilt or do I have to buy replacements?
A: These are completely rebuildable, by us or anyone with nitrogen
