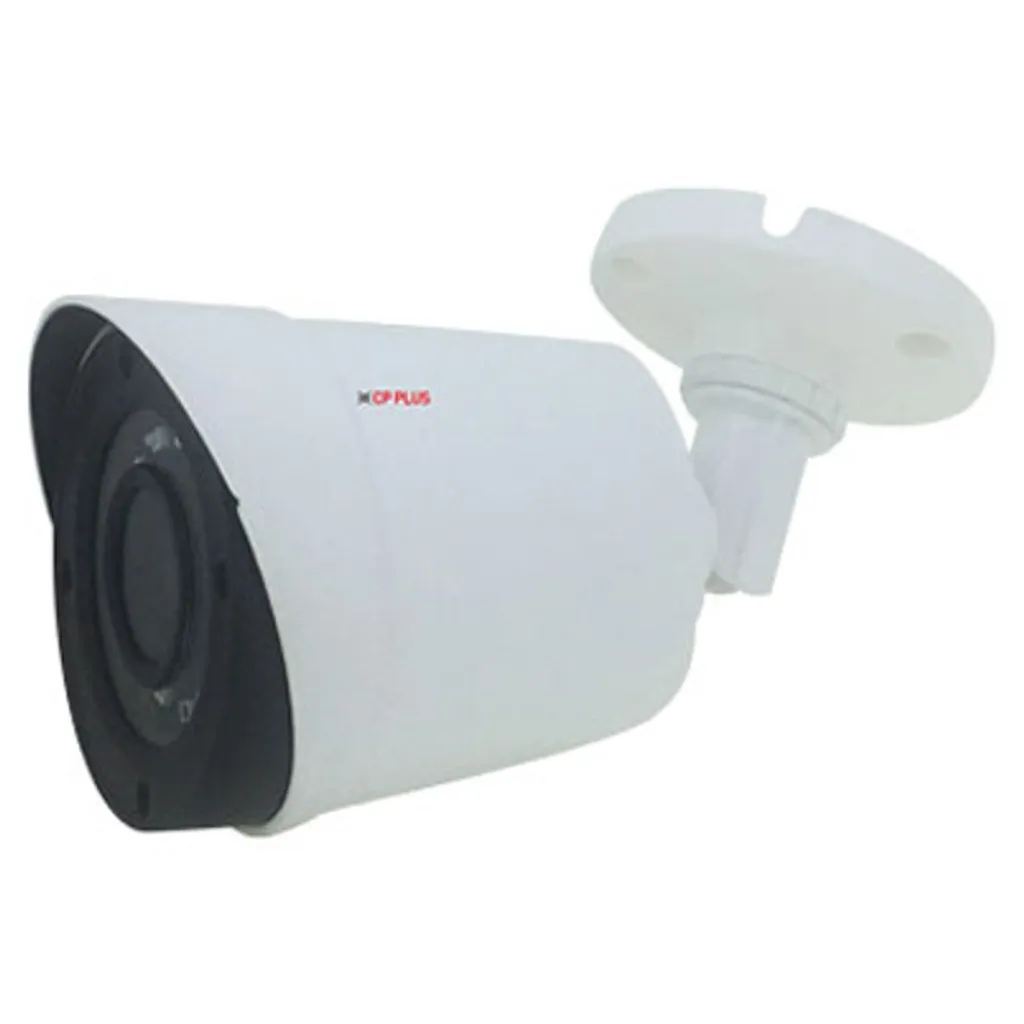

Product Description
-
1/2.7” 2.4MP HQIS Pro Image Sensor (6.858cm)
-
25/30fps@ 2.4MP
-
DWDR, Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
-
Plug-n-Play HD/SD Camera
-
3.6mm Lens
-
Equipped with fine IR LEDs for clearer night vision
-
IR Range of 20 Mtr., IP66
-
Compatible with HDCVI, HDTVI, AHD and CVBS Formats
Product Specification
|
Brand |
CP PLUS |
|
Product Type |
Bulllet Camera |
|
Product Code |
CP-VAC-T24PL2-V3 |
|
Image Sensor |
1/2.7” 2.4MP HQIS Pro Image Sensor (6.858cm) |
|
Minimum Illumination |
Color(0.1Lux), (0 Lux IR LED On) |
|
Body Type |
Bullet |
|
Shutter Speed |
1/50s(1/60s)-1/100,000s(Auto/Fixed) |
|
White Balance |
Auto |
|
Agc Control |
Auto |
|
Lens |
3.6mm |
|
Gamma Correction |
0.45 |
|
S/N Ratio |
≥41dB |
|
Back Light Comp. |
Auto |
|
Frame Rate |
30fps(60Hz) , 25fps(50Hz) |
|
No. Of Ir Leds |
12pcs |
|
Video Output |
1.0Vp-p Composite Output (75O / BNC), HD-AHD(1080P)\HD-TVI(1080P)\ HD-CVI(1080P)\CVBS |
|
Resolution |
2.4MP |
|
ICR |
support |
|
Wdr |
DWDR |
|
IR Range |
IR Range of 20 Mtr. |
|
Operating Temperature |
-20°C~ 50°C |
|
Humidity |
10% ~ 90% (humidity), <95% RH no dew |
|
Power Source |
DC12V( /-15%) |
|
Power Consumption |
0.4W(2.5W after IR LED Powered on) |
|
Weatherproof Standard |
IP66 |
|
Dimension |
154.6mm x 71mm x 71mm |
|
Weight |
0.2 KG |
|
Warranty |
As Per Manufacturer Terms And Conditions |
