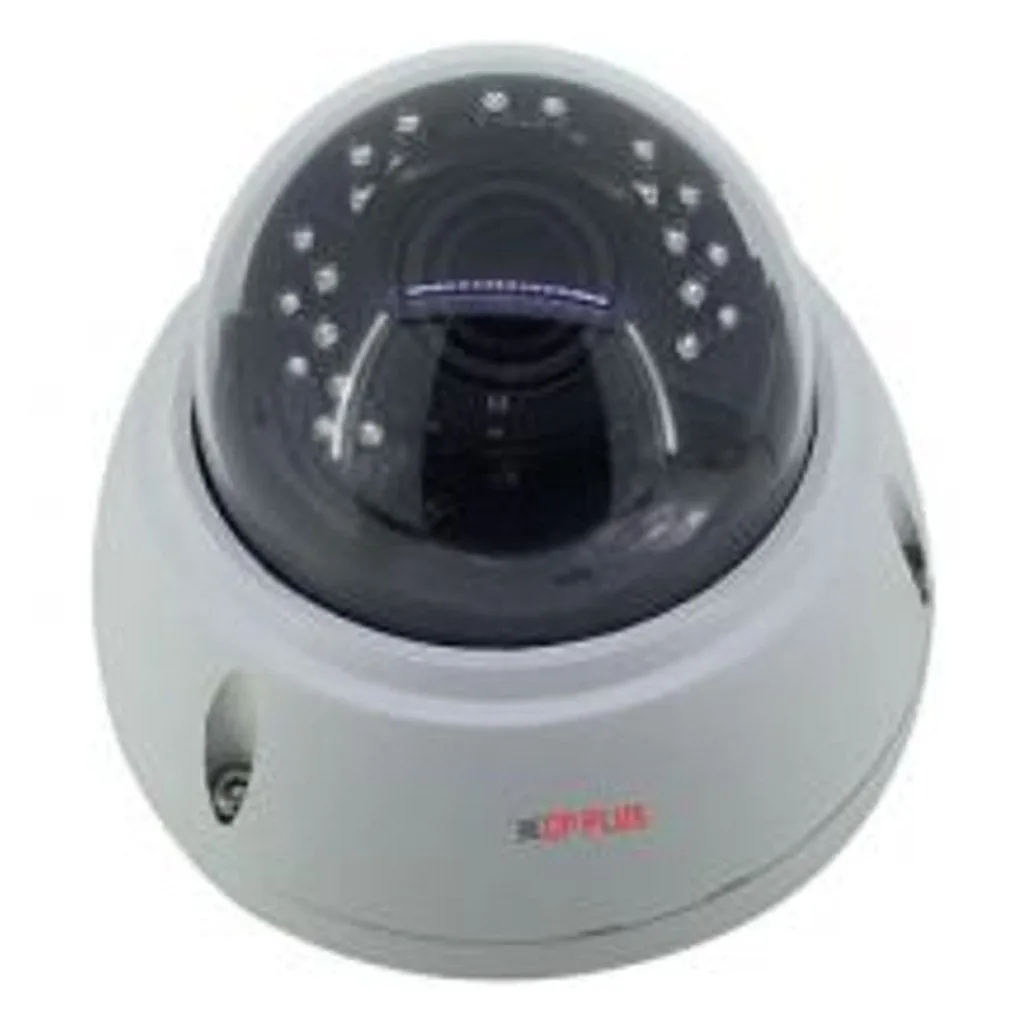

Product Description
-
1/2.7" 2.4 MP HQIS Pro Image Sensor
-
DWDR, Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
-
Plug-n-Play HD/SD Camera
-
2.8-12mm Varifocal Lens
-
Equipped with fine IR LEDs for clearer night vision
-
IR Range of 40 Mtr., IP66
-
Compatible with HDCVI, HDTVI, AHD and CVBS Formats
Product Specification
|
Brand |
CP PLUS |
|
Product Type |
Dome Camera |
|
Product Code |
CP-VAC-V24FL4-V3 |
|
Image Sensor |
1/2.7 |
|
Minimum Illumination |
Color(0.1Lux), white and Black (0.01 Lux IR LED On) |
|
Body Type |
Vandal Dome |
|
Shutter Speed |
1/50s(1/60s)-1/100,000s(Auto/Fixed) |
|
White Balance |
Auto |
|
Agc Control |
Auto |
|
Lens |
2.8-12mm Varifocal |
|
Gamma Correction |
0.45 |
|
S/N Ratio |
≥41dB |
|
Back Light Comp. |
Auto |
|
No. Of Ir Leds |
18pcs |
|
Frame Rate |
30fps (60Hz) , 25fps(50Hz) |
|
Video Output |
1.0Vp-p Composite Output (75O / BNC), HD-AHD(1080P)\ HD-TVI(1080P)\ HD-CVI(1080P)\ CVBS |
|
Osd |
Support |
|
Resolution |
2.4 MP@25 fps |
|
ICR |
support |
|
Wdr |
DWDR |
|
IR Range |
IR Range of 40 Mtr |
|
Operating Temperature |
-20°C~ 50°C |
|
Humidity |
10% ~ 90% (humidity) , <95% RH no dew |
|
Power Source |
DC12V( /-10%) |
|
Power Consumption |
0.4W (2.5W after IR LED Powered on) |
|
Weatherproof Standard |
IP66 |
|
Dimension |
132mm x 132mm x 105.7mm |
|
Weight |
0.61 KG |
|
Warranty |
As Per Manufacturer Terms And Conditions |
