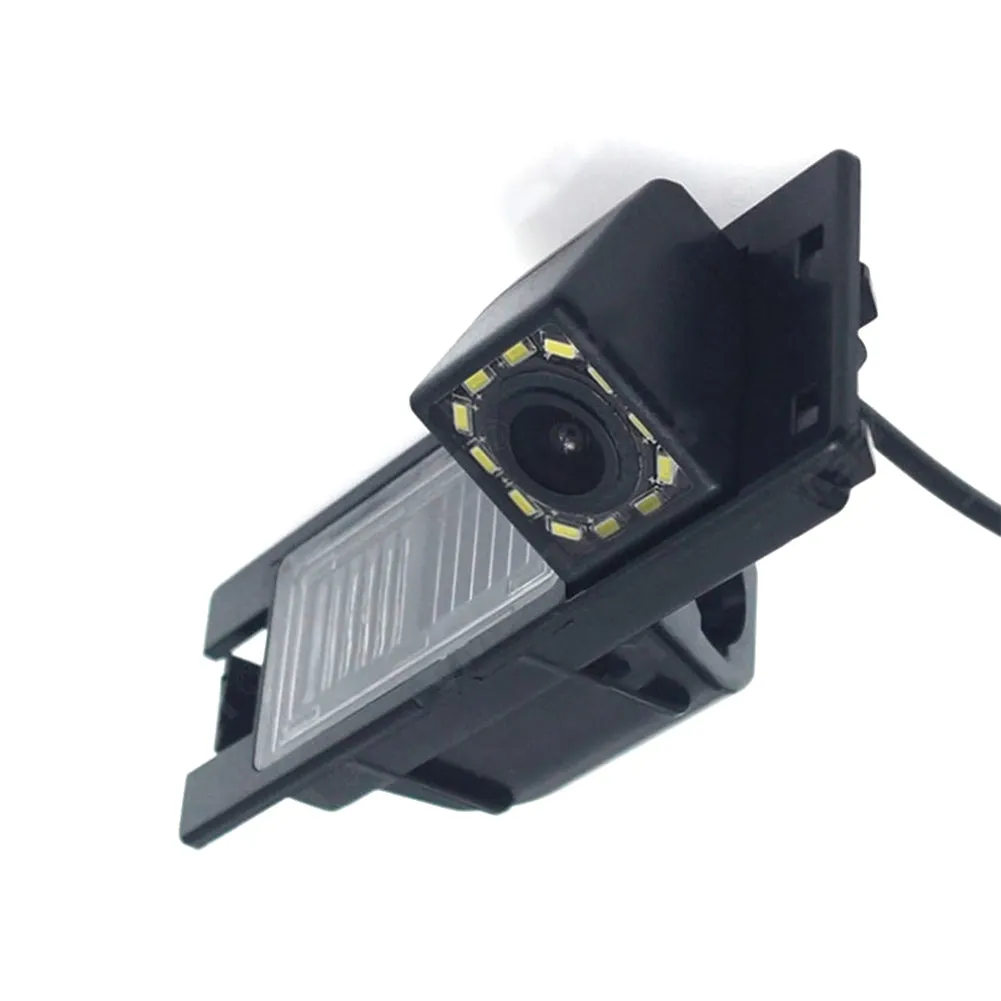

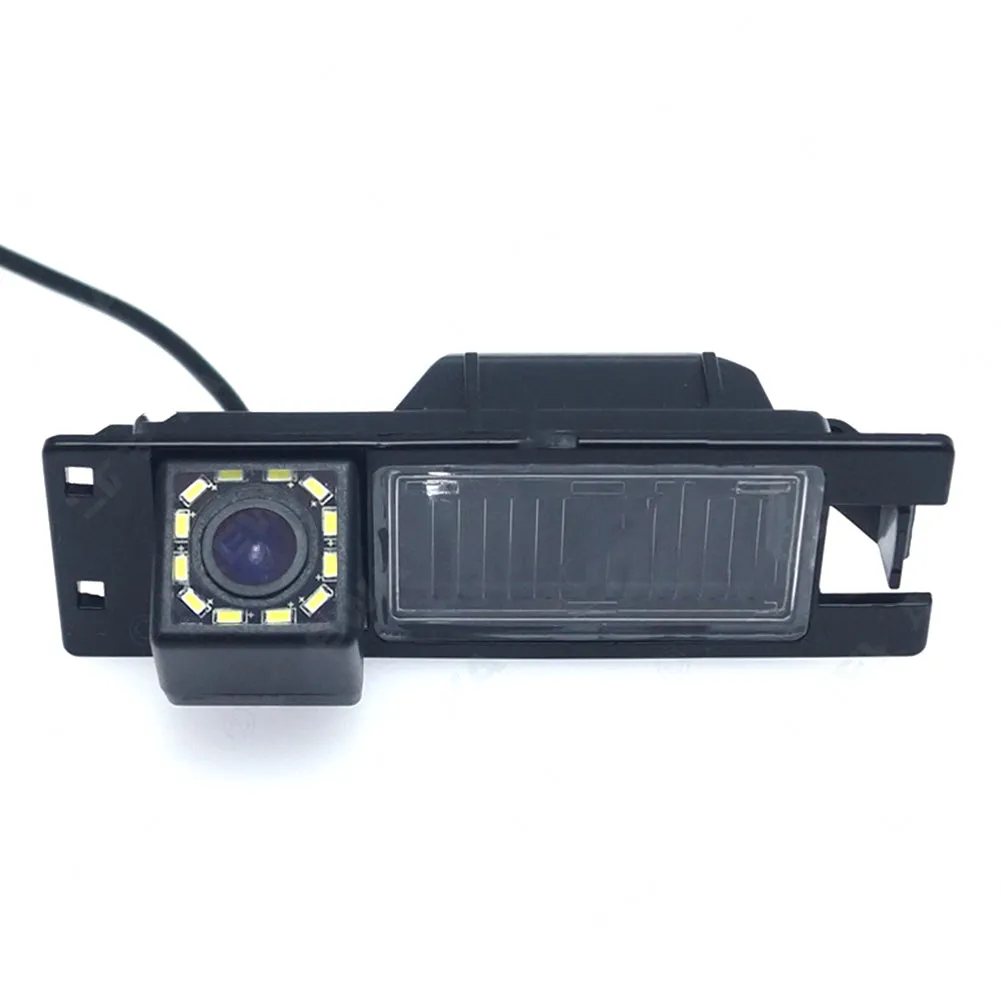

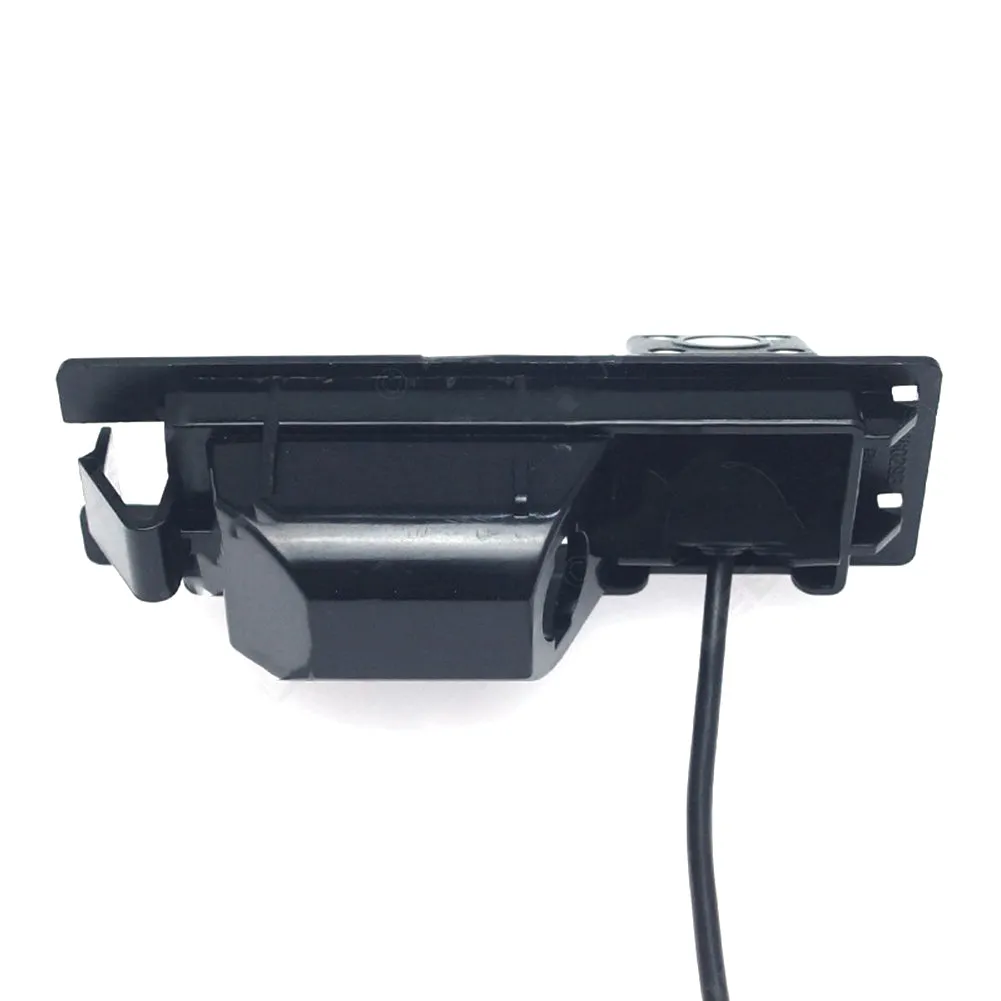

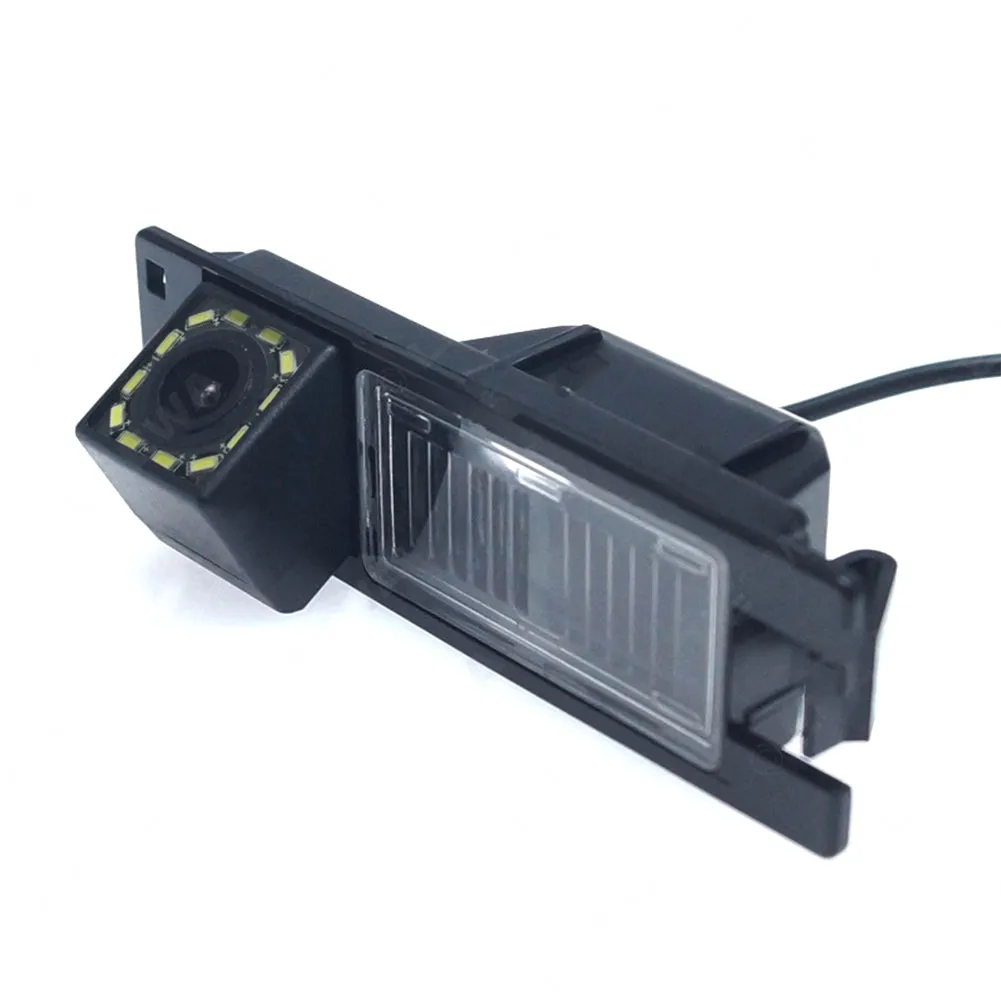

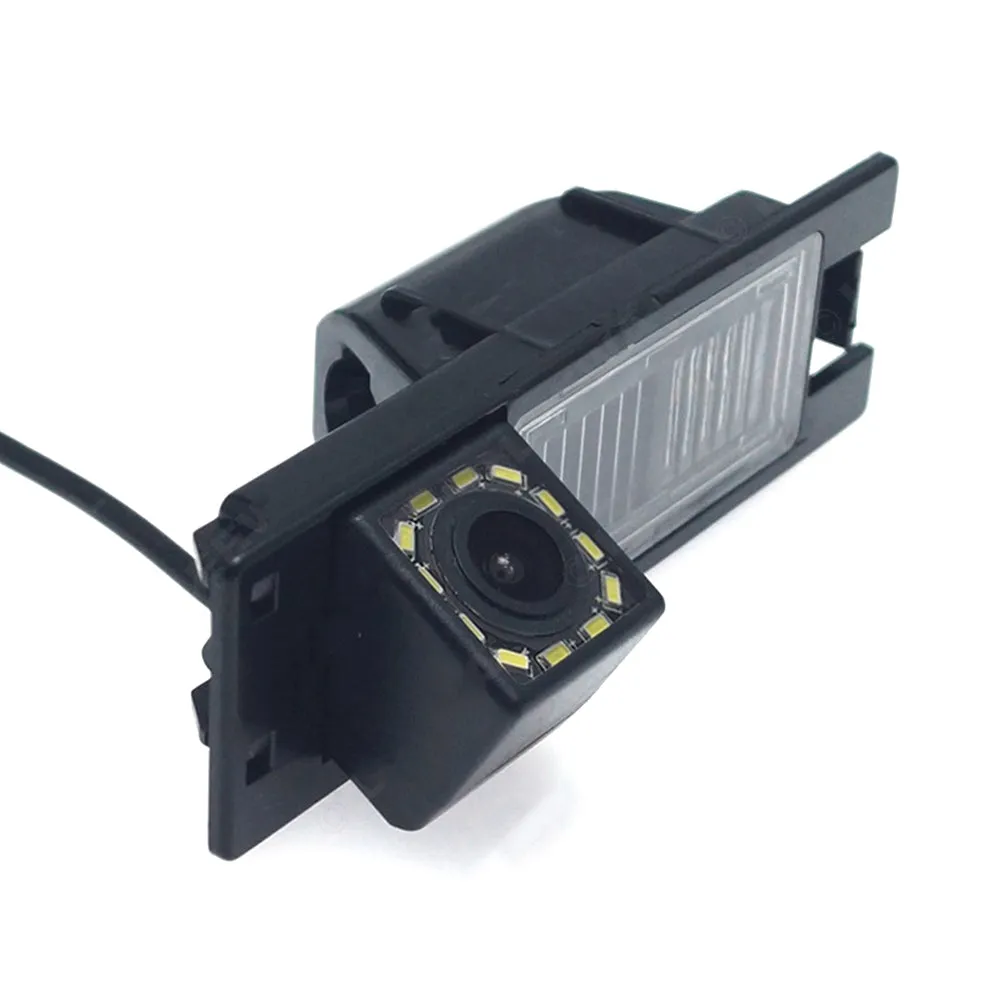

Name: HD Rear View Reversing Camera
Material: ABS
Color: Black
Image sensor: CCD PC7070K
Lens material: glass
Effective pixels: 640 x 480 pixels
Horizontal resolution: 480TV lines
Field viewing angle: 170 degrees (diagonal), 138 degrees (H), 125 degrees (V)
Night vision: support
Lens with LED light: optional
Parking guideline: support
Wire Switch: No
Reversing image: Mirror image
Mirror/Original Switch: No
TV system: NTSC
Video output: CVBS RCA connector (1.0VP-P, 70OHM)
Minimum Illumination: 0.01 Lux / F = 1.2 (0 Lux with IR on)
Power supply: DC12V
Power Consumption: 120mA
Operating temperature: -20°C to 75°C, RH 95% MAX
Storage temperature: -40°C to 80°C, RH 95% MAX
Waterproof grade: IP67/IP68
Packing list:
1 x HD Rear View Reversing Camera
Note:
1. Due to manual measurement, please allow 1-3cm error. Make sure you don't mind before bidding.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
