Product Details
＋

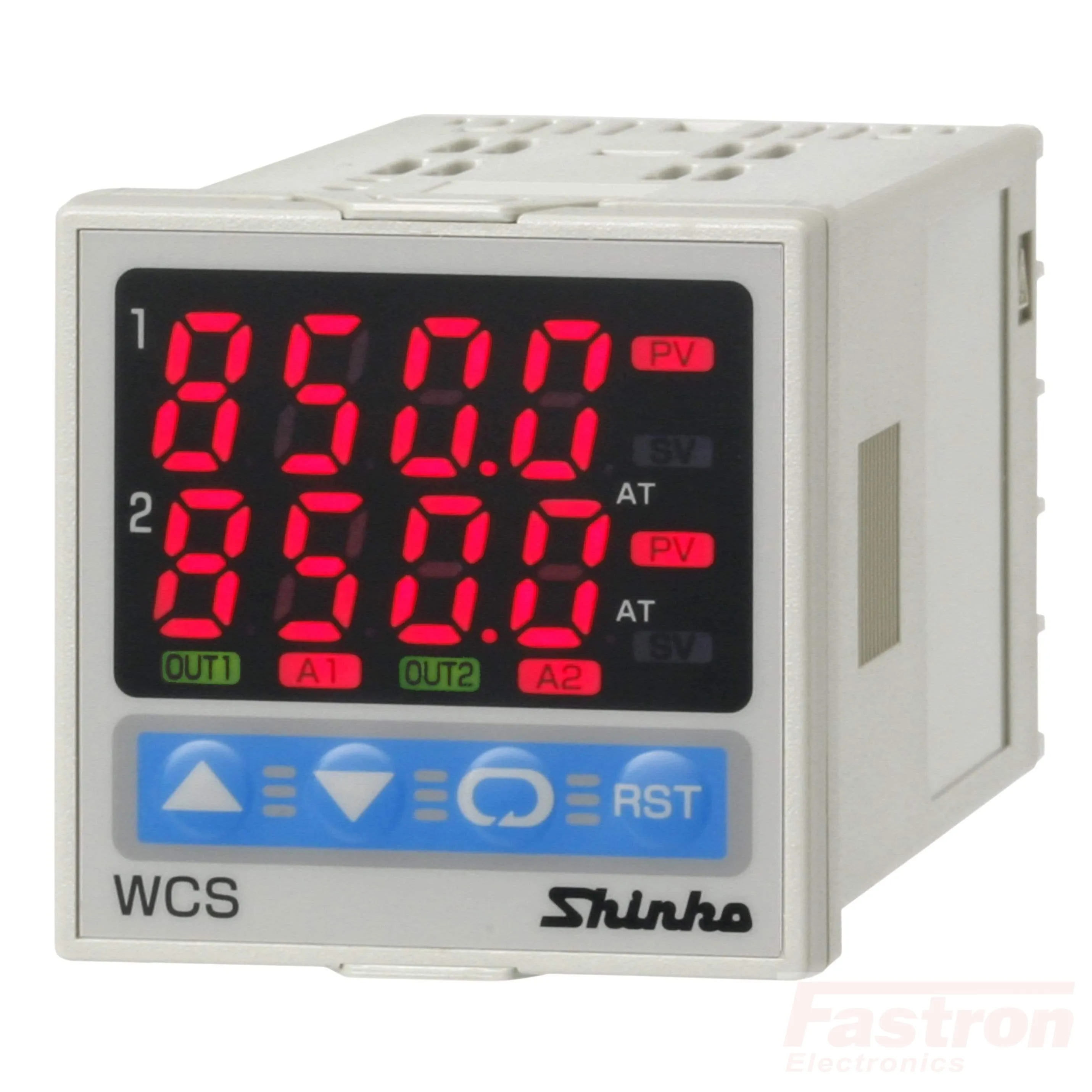

Shinko WCS13ARR/MM Series Dual Loop Digital Indicating Controllers
- Differential control, Tank level control, converter function are standard features
- 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response)
- Drip-proof / Dust-proof IP66 (front panel only)
- 9-step pattern (for SV and time) is a standard feature
- UL/CSA Approved
- • Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type)
- Each unit needs just 60 mm depth panel space
- EC Compliant (Details)
Specification
| Shinko Part Number |
WCS13ARR/MM |
| Control Output 1 | Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) |
| Control Output 2 | Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) |
| Input | Multirange (refer to datasheet) |
| Option | None |
| Mounting Style | 48 x 48mm Panel Mount |
| Supply Voltage | 100 - 240VAC |
| Termination Style | Screw |
| Weight | 180g |
| Factory Pack Qty | 1 |
| ROHS | Yes |
| UL | Yes |
| CE | Yes |
Datasheet
, Obsolete. for replacement model
