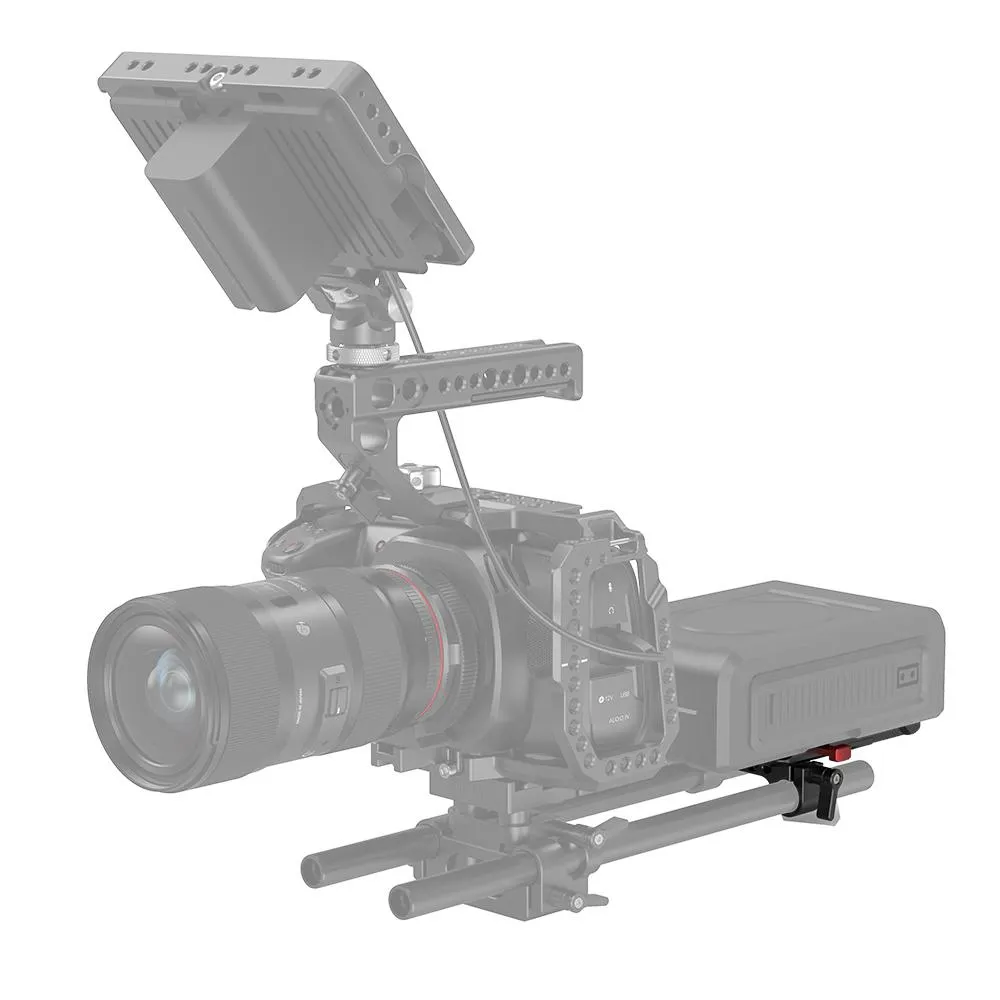

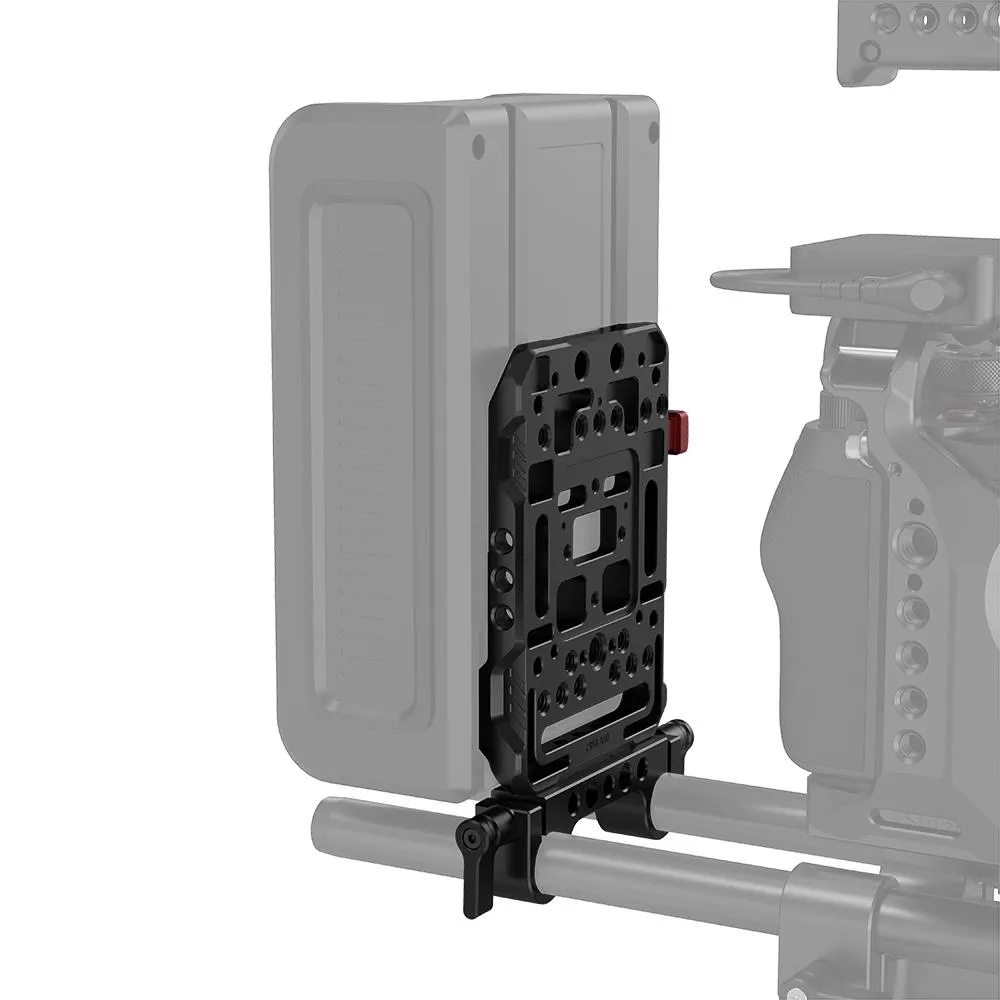

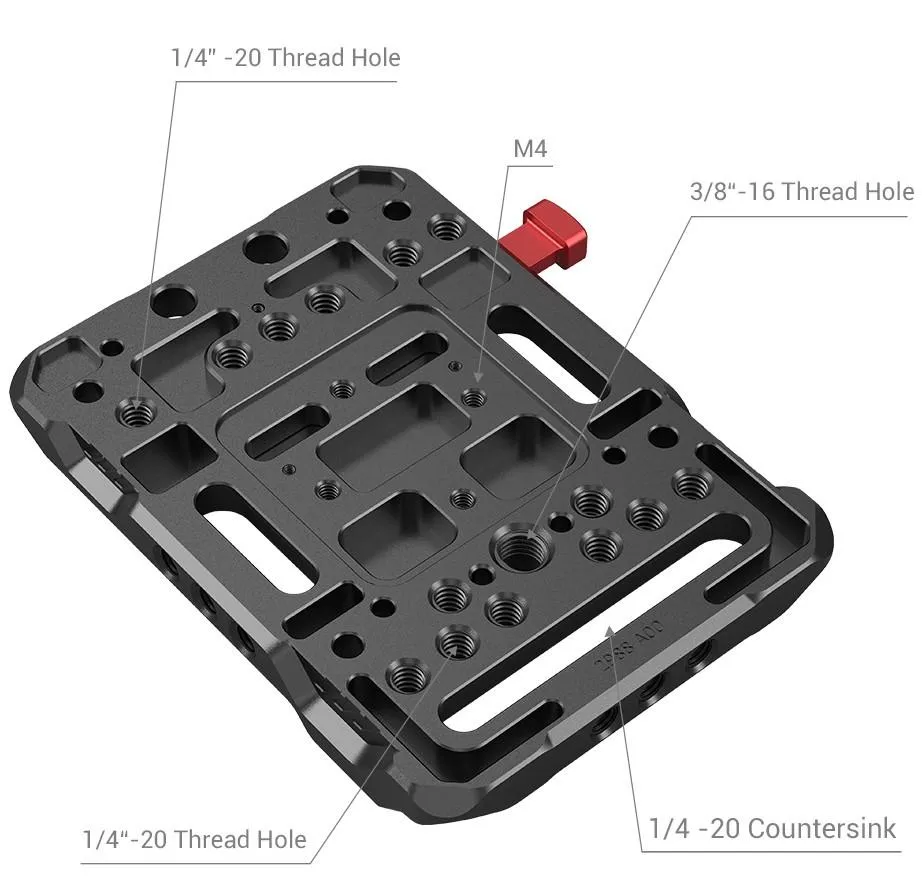

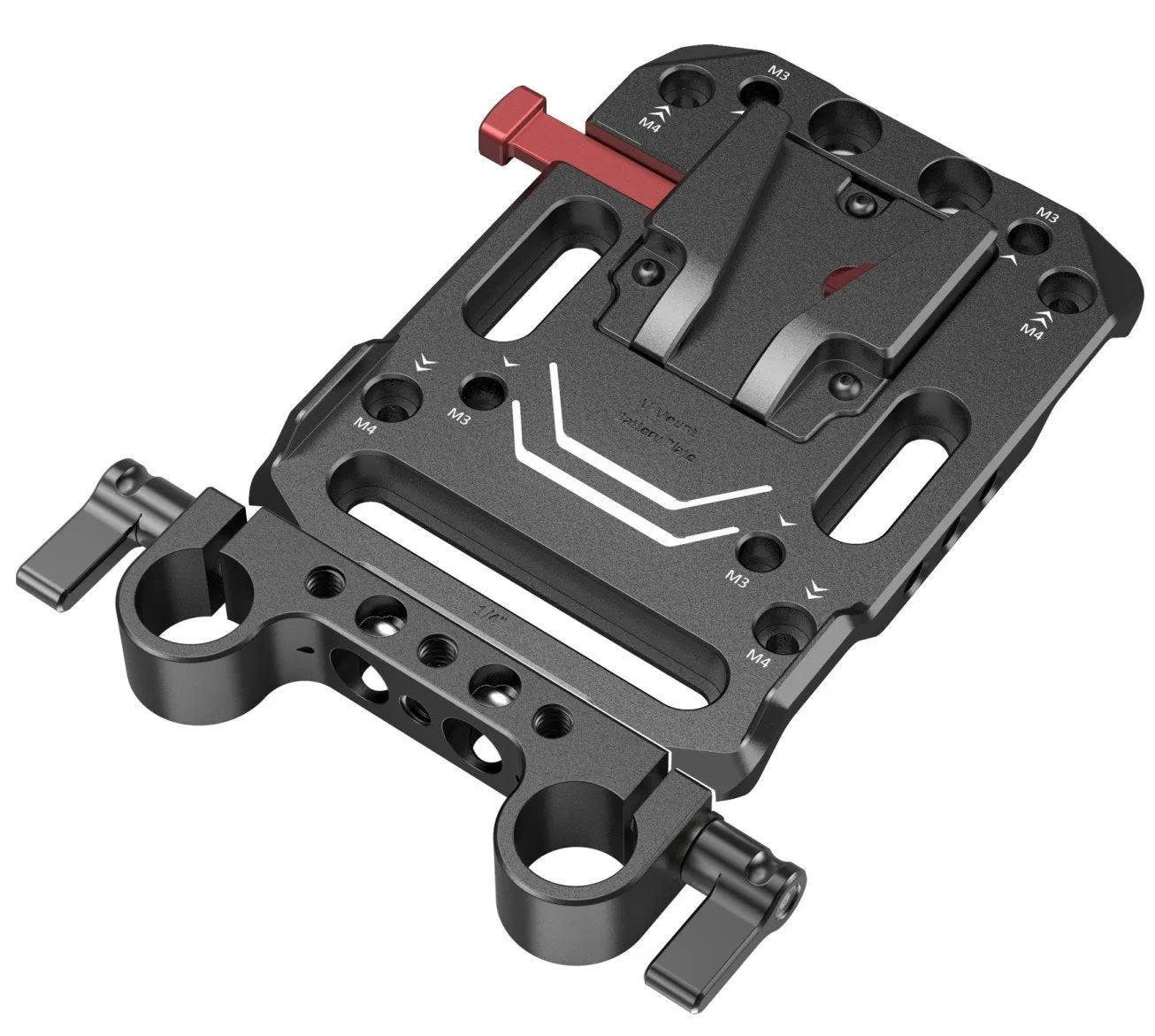

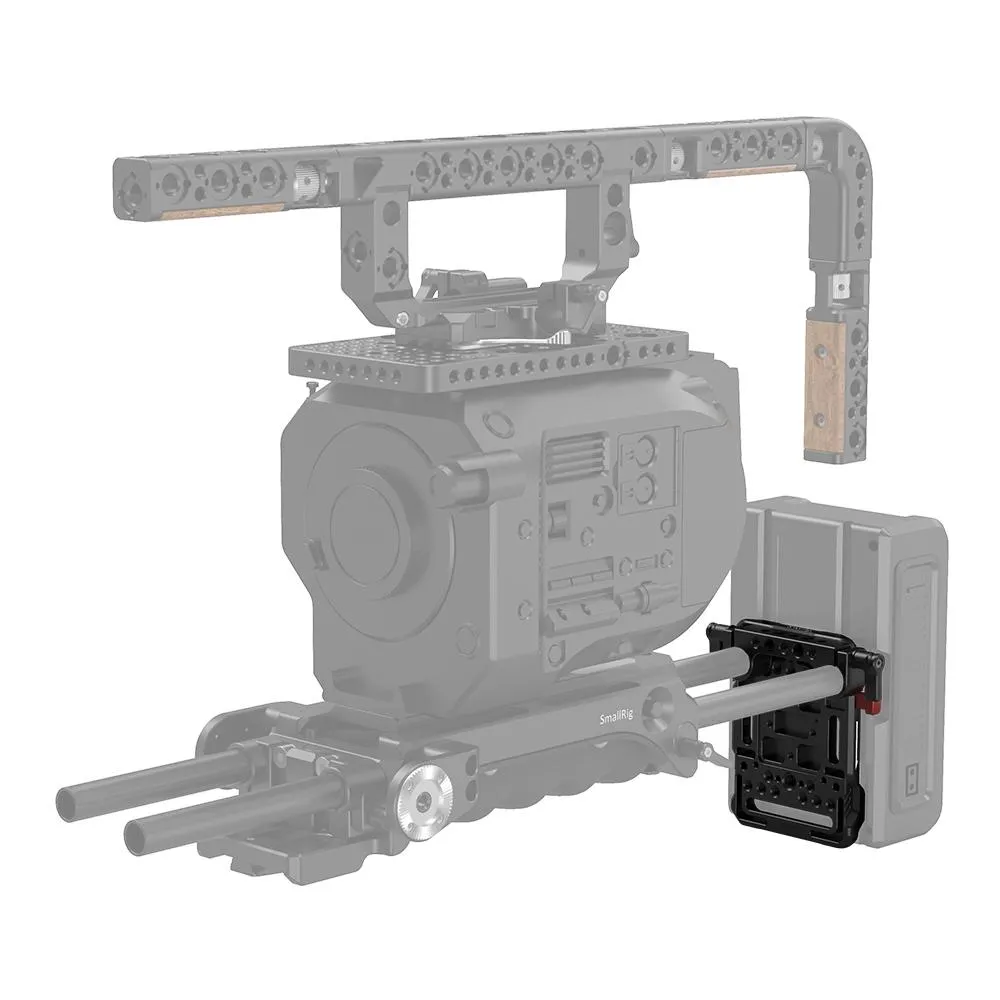

SmallRig V Mount Battery Plate with Dual 15mm Rod Clamp 3016 utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s). It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system in a variety of different installation ways. The plate itself features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories. Two stoppers will prevent the battery from twisting when attached. The plate is also compatible with the Blackmagic URSA mini.
Designer: Nico Robin

Note:
1. No V-Lock part (male) provided with the plate.
2. This is purely a mounting solution for a V-mount battery — no power ports on the plate.

Compatibility:

• The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

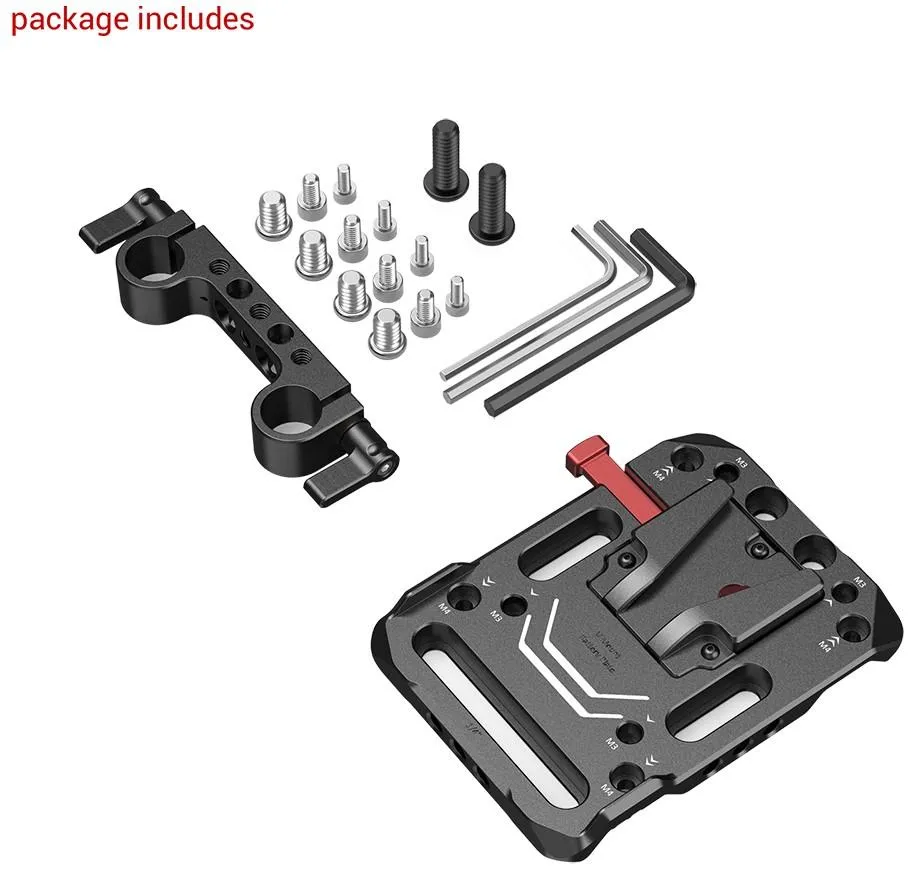

Package Includes:

• 1 x V Mount Battery Plate
• 1 x Dual 15mm Rod Clamp
• 3 x Allen Wrench
• 4 x 1/4-20" Screw (short)
• 2 x 1/4-20" Screw (long)
• 4 x M4 Screw
• 4 x M3 Screw

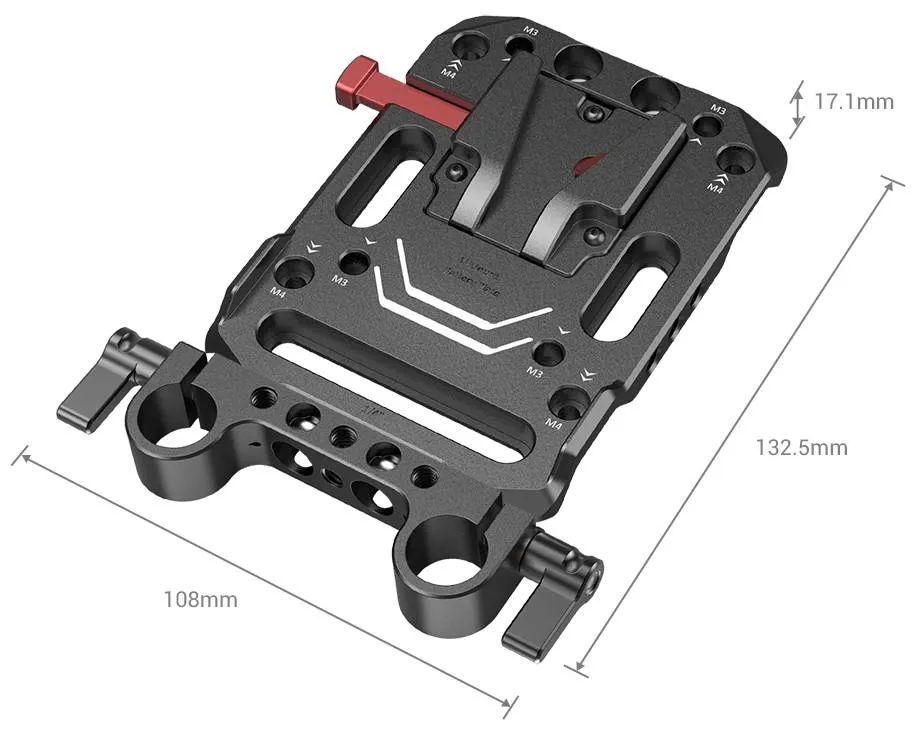

• Product Dimensions: 132.5 x 108 x 17mm
• Package Dimensions: 135 x 100 x 55mm
• Net Weight: 190g±5g
• Package Weight: 242g±5g
• Material(s): Aluminum Alloy
