Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Housing Style | Square Flange |
| IP Rating | IP66 |
| Mounting Type | Flange Mount |
| NEMA Rating | 4 ; 13 |
| Number of Channels | 2 |
| Orientation | Side |
| Output Type | Quadrature |
| Pulse Per Revolution | 600 PPR |
| Rotational Life | 4096 Cycles |
| Series | |
| Shaft Size | 0.374" |
| Special Features | Dual Channel w/Index ; Complementary Outputs ; Side Termination ; Express Encoder |
| Supply Voltage | 5-28 V |
| Technology | Optical |
| Termination | M18 |
| Type | Incremental |
Overview

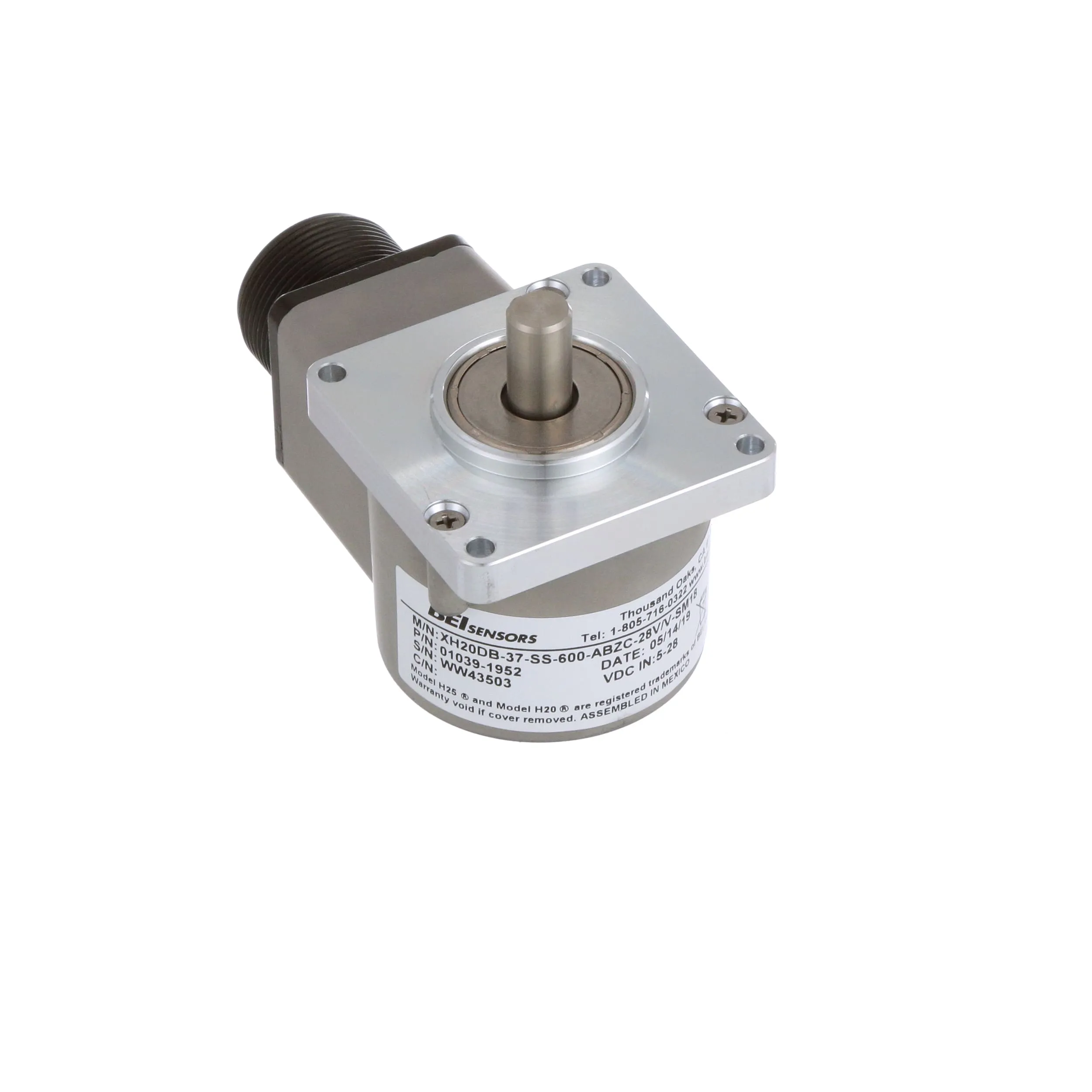

BEI Model H20® Incremental Encoder
H20 Series Encoders are extremely rugged encoders designed to economically fill the resolution range up to 4096 cycles per turn. It is also available in a hub shaft style with a flexmount (inset) for easy mounting directly to small motors.
