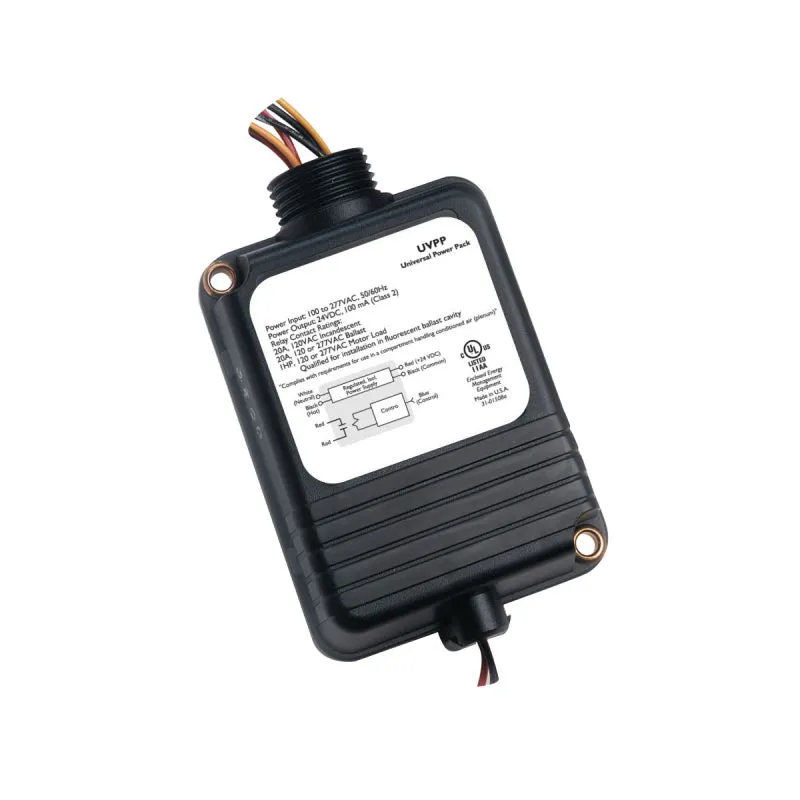

The Universal Voltage Power Pack is a self-contained transformer and relay (an ON/OFF switch controlled by a circuit) designed for low-voltage 24 VDC occupancy sensors.

Features

• Color: Black
• Voltage: 120/277V
• Automatic voltage detection
• Electrical loads switching capability: maximum of 20 Amps
• Regulated 24VDC current; 150mA output
• Zero Arc Point Switching
• Plenum rated
• Mounts: inside or outside a junction box; inside a fixture
• Companion auxiliary relay device available (MPSA)

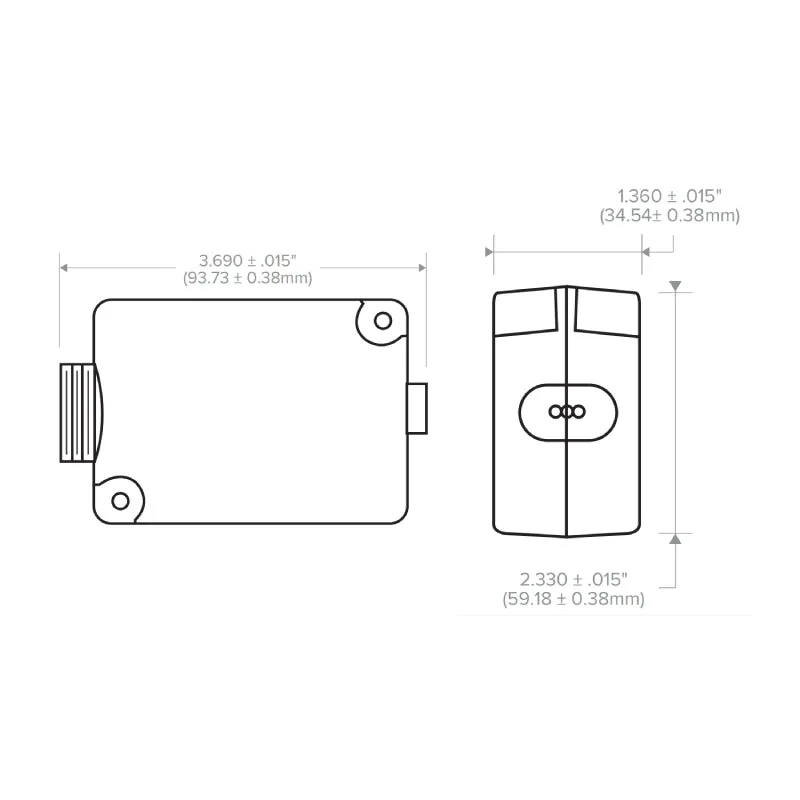

Dimensions

• Width: 3.69"
• Height: 2.33"
• Depth: 1.36"

Warranty

• 5 Years Limited Warranty
