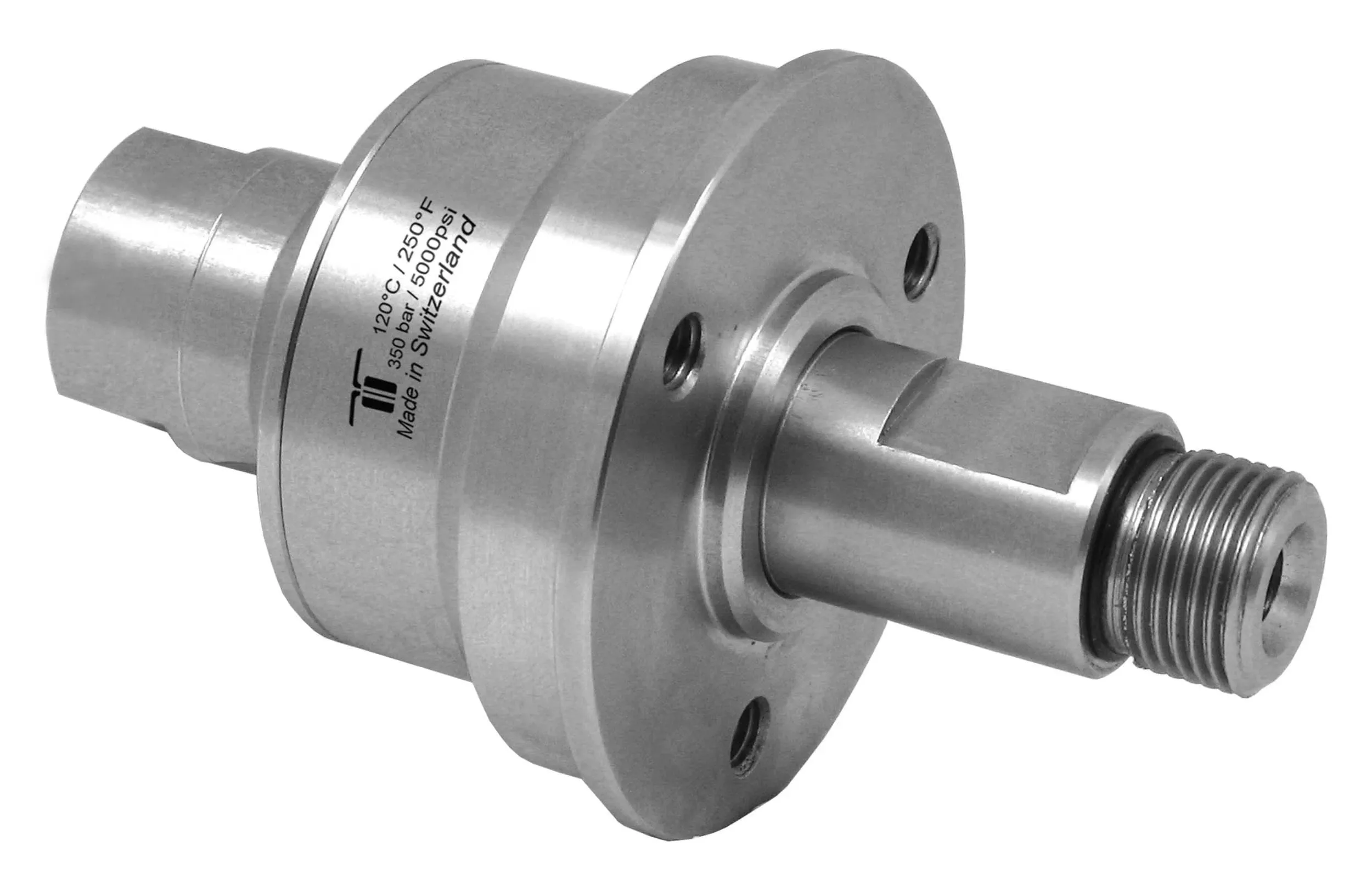

High rpm, high pressure, self rotating applications, surface cleaners, parts washers

• Complete stainless steel construction
• Seal failure warning, through weep holes
• Sealed stainless steel bearings
• Carbide seal system

G1 3/8” NPTF, G2 G3/8”M, NW 1/4”, SW1 0.87, SW2 0.63, L1 2.28, L2 1.46, L3 0.47, L4 012, D1 2.36, D2 1.10, Weight 23.0 oz

Technical data

• Pressure: DYCI:5000 psi(35 MPa), DYDI: 7300 psi (50 MPa)
• Temperature: 250 °F
• RPM: max. 2’000 rpm)
• Body: stainless steel
• Inner part: Stainless steel
• Seal: carbide
• Bearing: 2x radial ball bearings, 1x thrust ball bearing
• Throughput: pH 3-12
• Medium: filtered 10 microns, compressed air (290 psi)
