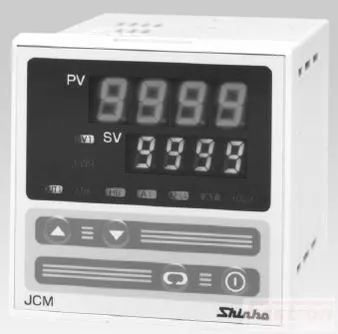

Shinko JCM33AAM Series Digital Indicating Controllers

  • • Program control, converter function are standard features
  • • 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response)
  • • Drip-proof / Dust-proof IP66 (front panel only)
  • 9-step pattern (for SV and time) is a standard feature
  • • UL/CSA Approved
  • • Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type)
  • • Each unit needs just 72 x 72mm panel space
  • • EC Compliant ()
    Specification
    Shinko Part Number JCM33AA/M
    Control Output 4 - 20mA
    Input Multirange (refer to datasheet)
    Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)
    Option 1 None
    Mounting Style 72 x 72mm Panel Mount
    Supply Voltage 100 - 240VAC
    Termination Style Screw
    Weight 240g
    Factory Pack Qty 1
    ROHS Yes
    UL Yes
    CE Yes

    Datasheet

    Limited stock.

    JCM33AA/M Temp Controller, 72x72mm, 100-240VAC, 4-20mA output
