Product Description
-
1/2.7" 2.4 MP HQIS Pro Image Sensor
-
DWDR, Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
-

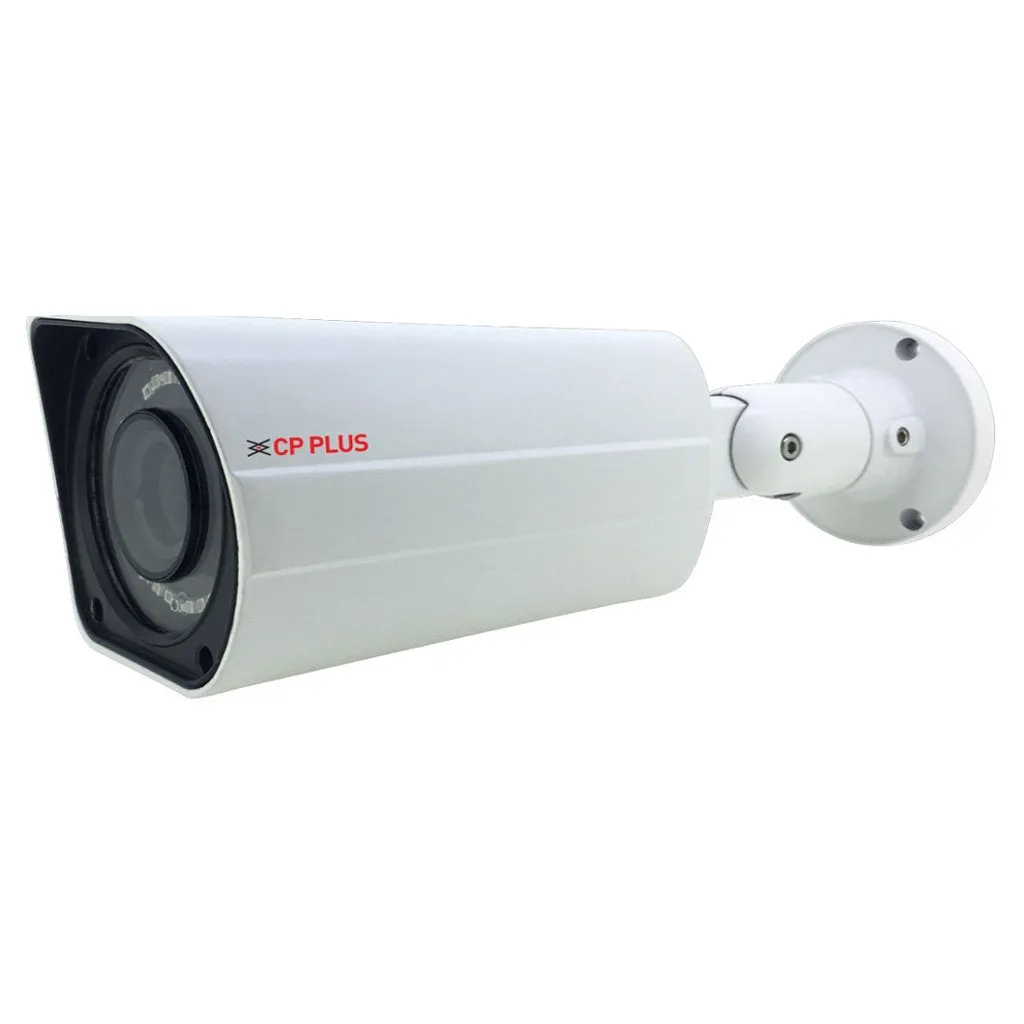

Plug-n-Play HD/SD Camera
-
2.8-12mm Varifocal Lens
-
Equipped with fine IR LEDs for clearer night vision
-
IR Range of 40 Mtr., IP66
-
Compatible with HDCVI, HDTVI, AHD and CVBS Formats
Product Specification
|
Brand |
CP PLUS |
|
Product Type |
Bullet Camera |
|
Product Code |
CP-VAC-T24FL5-V3 |
|
Image Sensor |
2.4MP HQIS Pro Image Sensor |
|
Minimum Illumination |
Color(0.1Lux),White and Black(0Lux IR LED On) |
|
Shutter Speed |
1/50s(1/60s)-1/100,000s (Auto/Fixed) |
|
White Balance |
Auto |
|
Gain Control (AGC) |
Auto |
|
Lens |
2.8-12mm Varifocal lens |
|
S/N Ratio |
≥41dB |
|
Back Light Compensation |
Auto |
|
Video Output |
1.0Vp-p Composite Output (75Ω / BNC), HD-AHD(1080P)\ HD-TVI(1080P)\ HD-CVI(1080P)\ CVBS |
|
Resolution |
2.4MP |
|
Frame Rate |
30fps(60Hz) , 25fps(50Hz) |
|
ICR |
Support |
|
Gamma Correction |
0.45 |
|
Osd |
Support |
|
Ir |
IR Range of 50 Mtr. |
|
Operating Temperature |
-20°C~ 55°C |
|
Humidity |
≤95% RH no dew |
|
Power Source |
DC12V( /-10%) |
|
Power Consumption |
0.4W(2.5W after IR LED Powered on) |
|
Weatherproof Standard |
IP66 |
|
Dimension |
255.16mm x 77.87mm x 85.37mm |
|
Weight |
1.32 Kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
