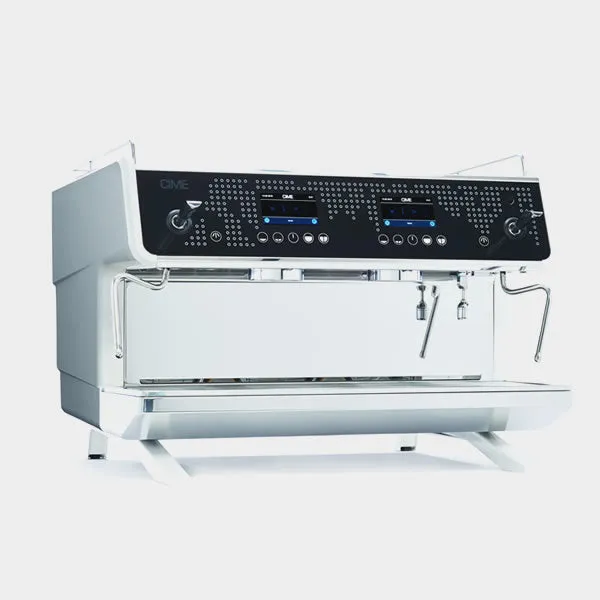

The machine is available in 2 or 3 group versions. Separate system of water tanks for tea and steam. 2 water tanks for each group (service and pre-heating), with dedicated sensor for adjusting the temperature to one tenth of a degree. Hot water directly drawn from the water mains.
A total of 6 or 8 water tanks are present in the versions with 2 and 3 groups, respectively. All the water tanks are insulated. Six dispensing profiles per group can be stored and edited. Each profile can contain up to 5 steps adjusted for time and pressure. 4.3″ capacitive LCD Multi-Touch Display for each group. The machine management parameters can be changed via the touchscreen.
- MULTI-TOUCH LCD DISPLAY FOR SETTING MACHINE MANAGEMENT PARAMETERS
- language, date and time settings
- editing of the dispensing profiles (in terms of pressure and temperature)
- temperature adjustment of the tea water tank
- temperature adjustment of the steam water tank
- regulation of water tank for group
- regulation of the unit’s uppermost water tank (located above the unit)
- cup warmer temperature adjustment
- adjustment of dispensed doses of coffee and tea
Fault analysis can also be carried out to identify faults more quickly. There is a waterproof drawer compartment in the lower part of the machine that contains the power control unit. The motherboard and the management circuit boards for the inverter motors are housed on the sides of the machine, to facilitate interventions and replacements.
