Product Details
＋

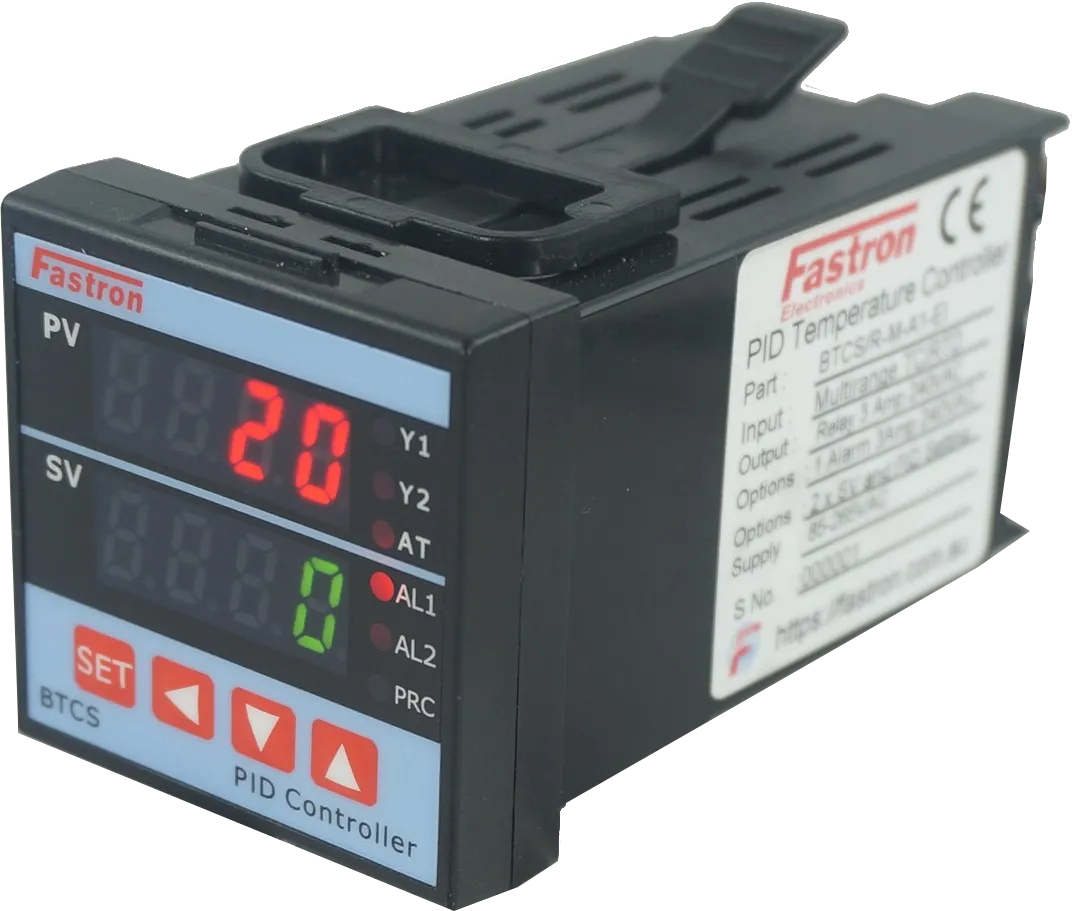

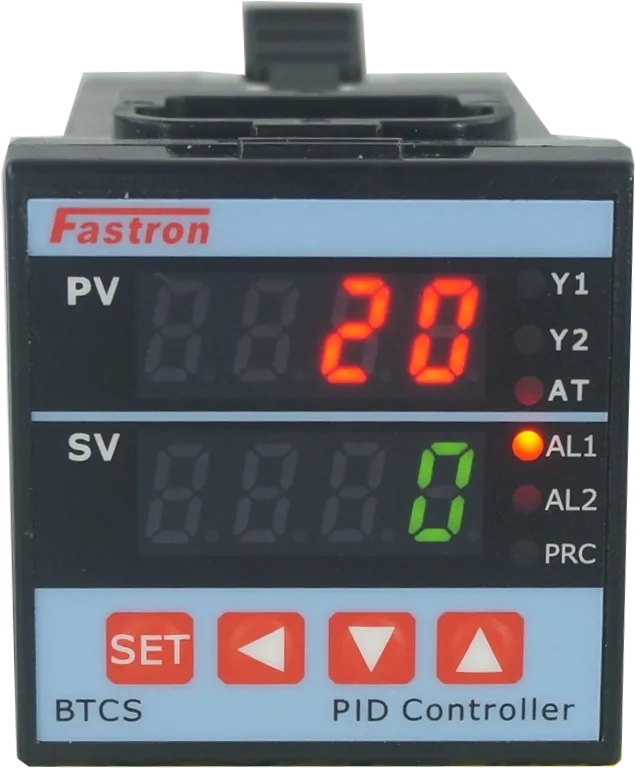

Fastron Electronics BTCS/A-M-A2, PID Controller 48x48mm, 85-265VAC, 4-20mA output 2 Alarms, Multirange TC/RTD/4-20mA Input
- 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response)
- Dust-proof IP56 (front panel only)
- Optional 32 Step pattern (for SV and time) is a standard feature
- CE Approved
- Each unit needs just 80 mm depth panel space
Specification
| Fastron Part Number | BTCS/A-M-A2 |
| Control Output | 4-20mA |
| Input | Multirange 4-20mA/RTD/Thermocouple (Optional Linear Voltage/Current other than 4-20MA Refer to datasheet) |
| Option 1 | 2nd Alarm |
| Option 2 | None |
| Mounting Style | 48x48mm Panel Mount |
| Load Voltage Range | 100-240VAC |
| Termination Style | Screw |
| Weight | 250g |
| Factory Pack Qty | 1 |
| CE | Yes |
