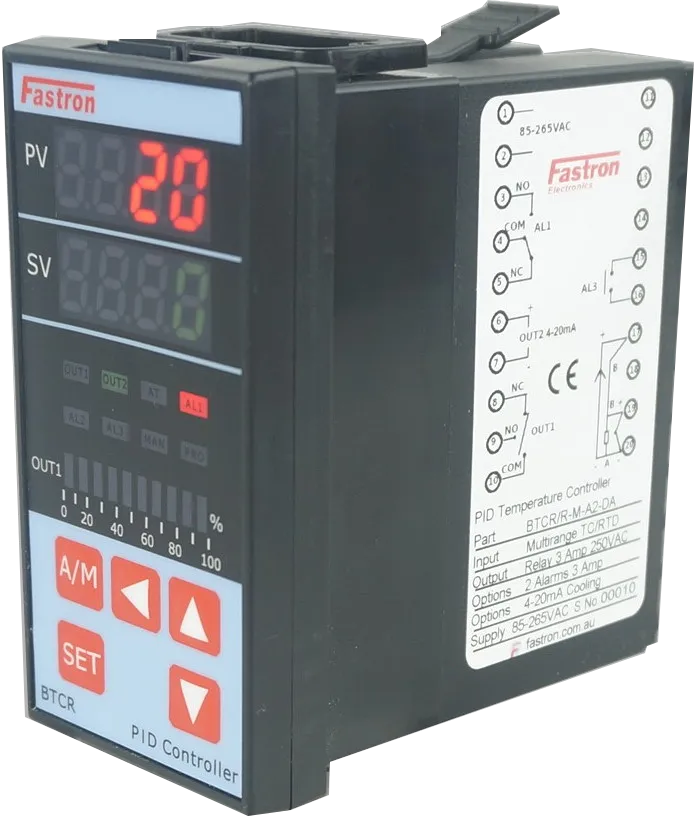

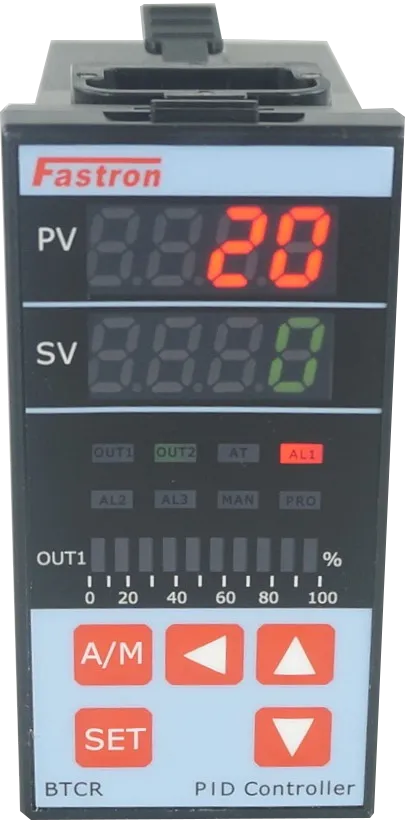

Fastron Electronics BTCR/R-M-A2-DS, PID Controller 48x96mm, 15-50VDC, Relay Output 2 Alarms, SSR Cooling, Multirange TC/RTD/4-20mA Input

  • 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response)
  • Dust-proof IP56 (front panel only)
  • Optional 32-step pattern (for SV and time) is a standard feature
  • CE Approved
  • Each unit needs just 80 mm depth panel space
    Specification
    Fastron Electronics Part Number BTCR/R-M-A2-DS
    Control Output Relay 3 Amp (Resistive)
    Input Multirange TC/RTD/4-20mA (Optional Linear voltage/current other than 4-20mA. Refer to datasheet)
    Option 1 2nd Alarm
    Option 2 SSR Cooling
    Mounting Style 48 x 96mm Panel Mount
    Load Voltage Range 100-240VAC
    Termination Style Screw
    Weight 450g
    Factory Pack Qty 1
    Yes
    UL Yes
    CE Yes



    Datasheet
    BTCR/R-M-A2-DS, PID Controller 48x96mm, 15-50VDC, Relay Output 2 Alarms, SSR Cooling, Multirange TC/RTD/4-20mA Input
    • MultirangeTC
    • PT100
    • 420mA

    $ 71.45

    $ 54.96
