Product Details
＋

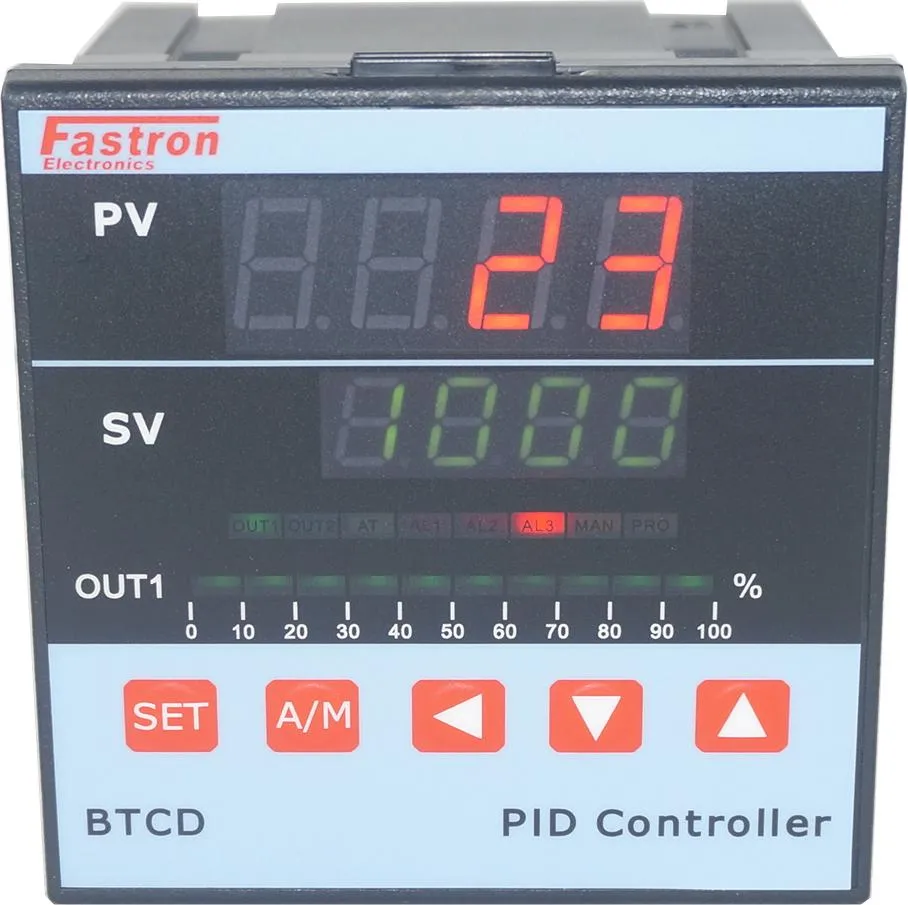

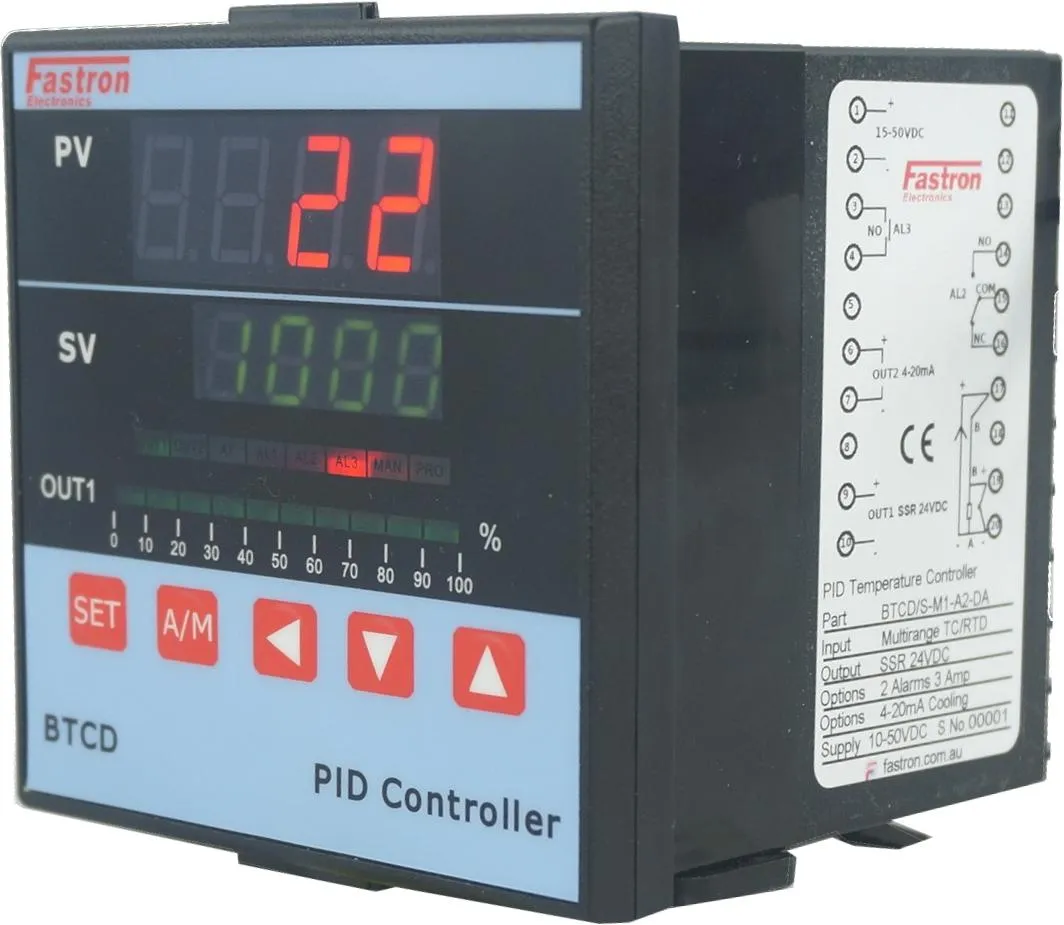

Fastron Electronics BTCD/R-M-A3-EI, PID Controller 96x96mm, 85-265VAC, Relay Output 3 Alarms, Event input (2xSV ), Multirange TC/RTD/4-20mA Input
- 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response)
- Drip-proof / Dust-proof IP56 (front panel only)
- CE Approved
- Each unit needs just 80 mm depth panel space
- Optional Pattern Control Feature
Specification
| Fastron Part Number | BTCD/R-M-A3-EI |
| Control Output | Relay 3 Amp (Resistive) |
| Input | Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) |
| Option 1 | 2nd and 3rd Alarm |
| Option 2 | Event Input (2 x SV) |
| Mounting Style | 96 x 96mm Panel Mount |
| Load Voltage Range | 100-240VAC |
| Termination Style | Screw |
| Weight | 600g |
| Factory Pack Qty | 1 |
| CE | Yes |
