Product Details
＋

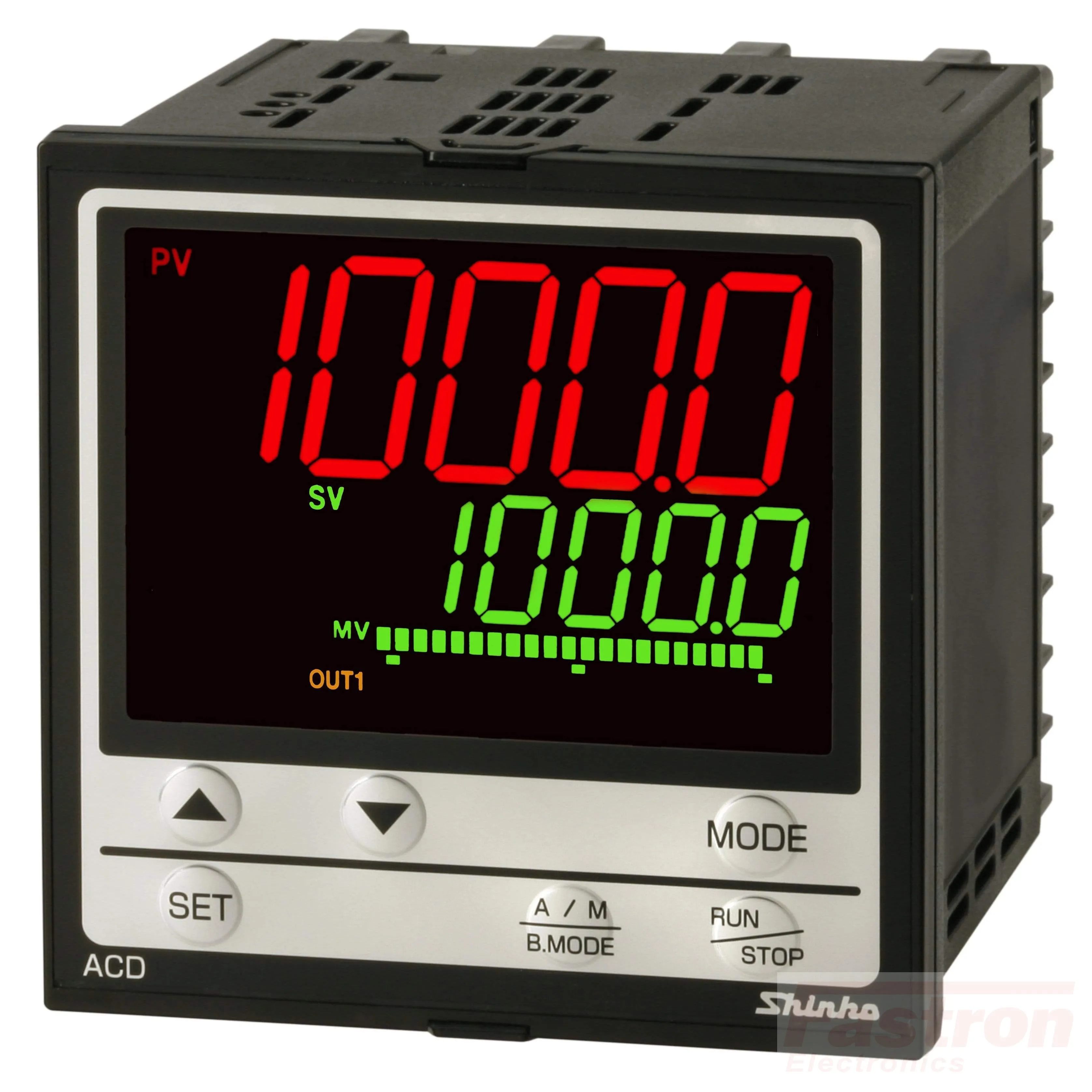

Shinko ACD15AR/M Series Digital Indicating Servo Controllers
- • Program control, converter function are standard features
- • 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response)
- • Drip-proof / Dust-proof IP66 (front panel only)
- • 9-step pattern (for SV and time) is a standard feature
- • UL/CSA Approved
- • Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type)
- • Each unit needs just 60 mm depth panel space
- • EC Compliant ()
Specification
| Shinko Part Number | ACD15AR/M |
| Control Output | 4 - 20mA |
| Input | Multirange (refer to datasheet) |
| Alarm | 2 x Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) |
| Option 1 | None |
| Mounting Style | 96 x 96mm Panel Mount |
| Supply Voltage | 100 - 240VAC |
| Termination Style | Screw |
| Weight | 330g |
| Factory Pack Qty | 1 |
| ROHS | Yes |
| UL | Yes |
| CE | Yes |
Datasheet
Delivery 3-4 weeks delivery if not in stock
