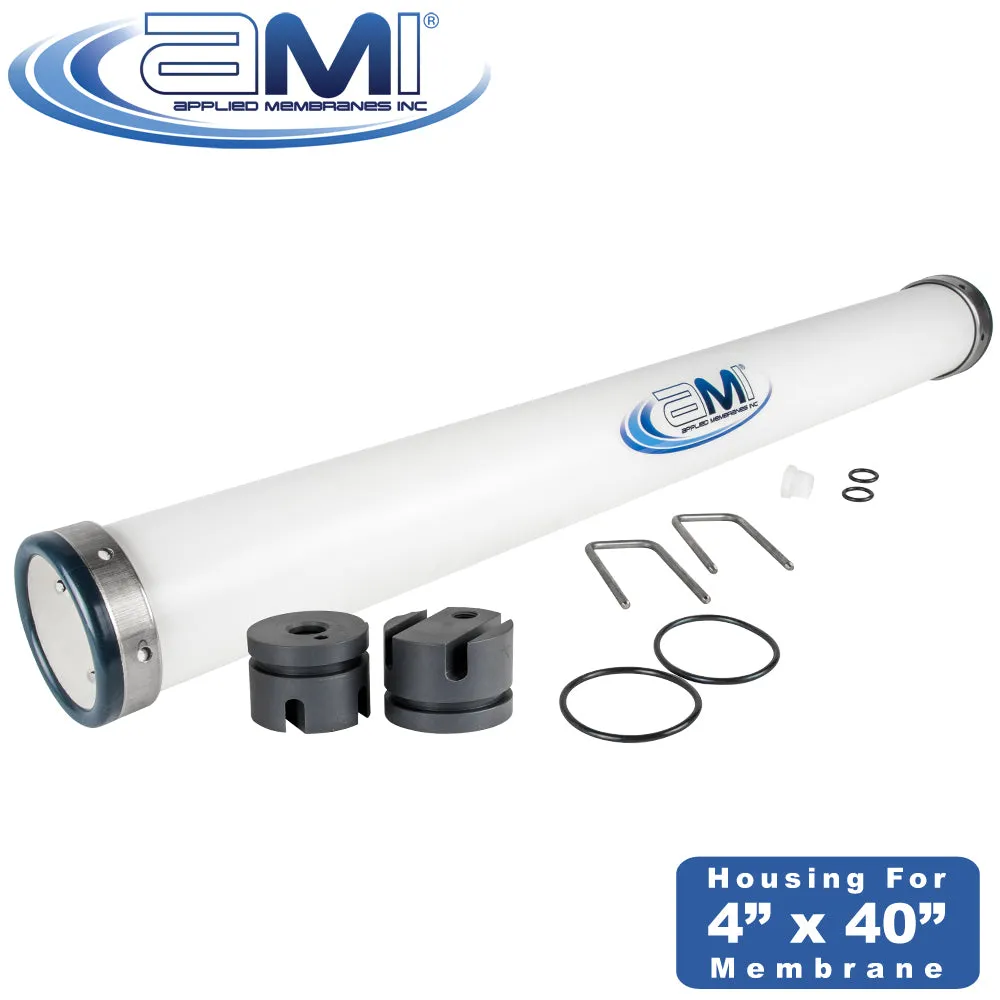

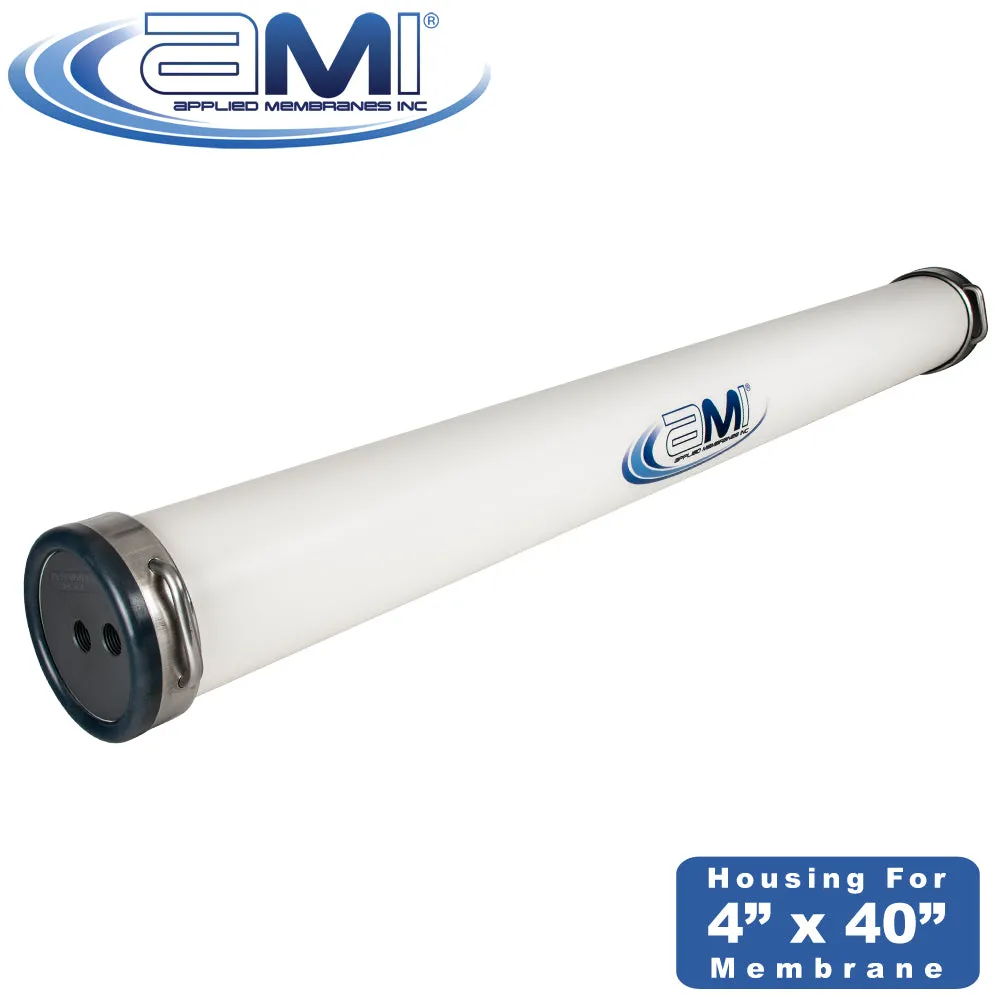

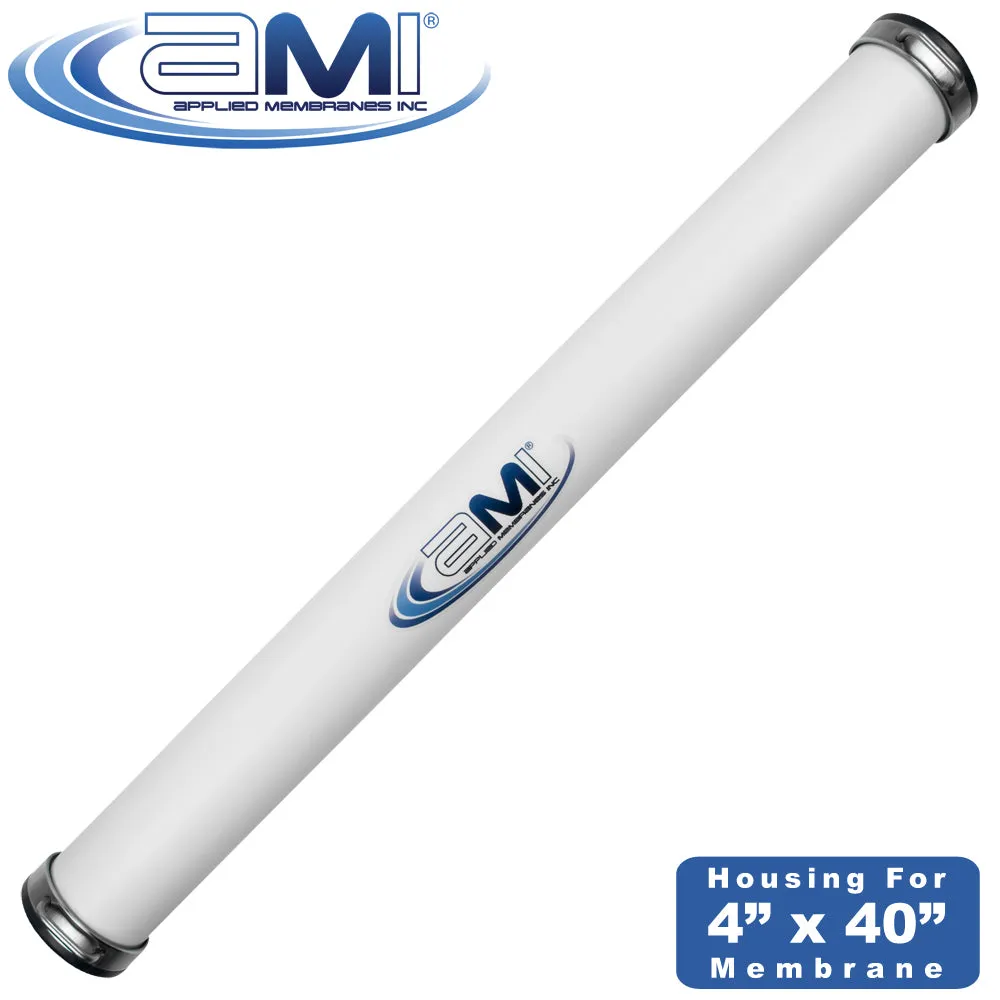

AMI PVC pressure vessels for housing 4" x 40" membrane elements are ideal for lower pressure membrane applications up to 200 PSI are designed for direct connection to AMI/Applied Membranes and FILMTEC/DOW style elements. The U-Pin style end closures are designed for ease of installing and replacing membrane elements, and the ½" FNPT connections for ease of connection with no special fittings required. Each membrane housing is individually inspected for quality assurance. Each membrane housing is sold complete with End Plugs, U-Pins, Feed Plugs, and O-Rings. are sold separately. |

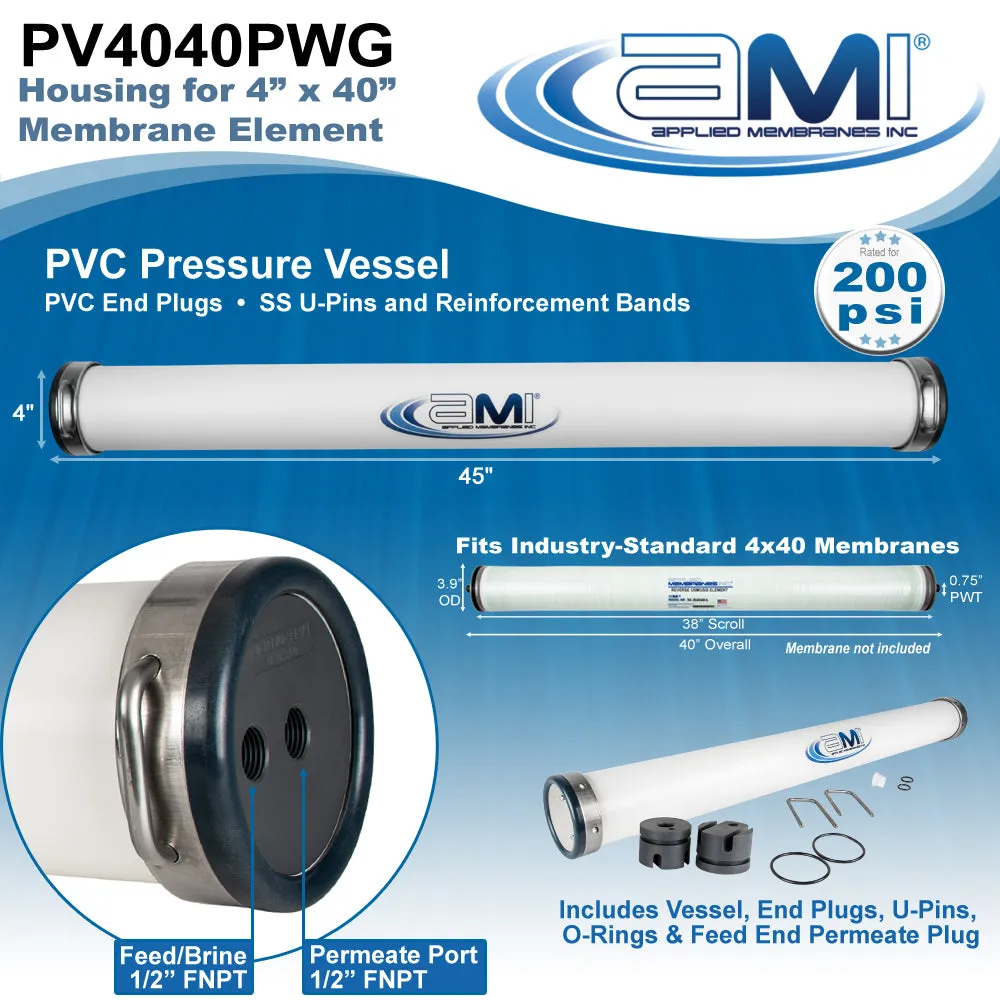

PVC Membrane Housing Specifications
|
Warning: PVC pressure vessels are limited to a maximum pressure of 200 psi (14 BAR) at 77°F (25°C). Higher pressure, higher temperature or water hammer will lead to premature failure. It is highly recommended that when these conditions exist, a pressure switch or relief valve be installed to protect the vessel. Alternatively, you may consider a stainless steel or FRP vessel.
Replacement Components for PVC Housings
| {{widget type="Magento\Catalog\Block\Product\Widget\Link" anchor_text="PV4040PD1212" title="Replacement End Plug for 4-Inch Membrane Housing Pressure Vessel" template="product/widget/link/link_inline.phtml" id_path="product/229"}} | End Plug with ½" Brine x ½" Product Ports, with O-Rings |
| {{widget type="Magento\Catalog\Block\Product\Widget\Link" anchor_text="PV-RR40U" title="Replacement U-Pin for 4-Inch Membrane Housing PVC or SS" template="product/widget/link/link_inline.phtml" id_path="product/230"}} | U-Pin |
| {{widget type="Magento\Catalog\Block\Product\Widget\Link" anchor_text="PV-OR40-342" title="Replacement O-Ring for 4-Inch Membrane Housing Pressure Vessel SS or PVC" template="product/widget/link/link_inline.phtml" id_path="product/231"}} | O-Ring for End Plug - External |
| {{widget type="Magento\Catalog\Block\Product\Widget\Link" anchor_text="PV-OR40-210" title="Replacement O-Ring for 4-Inch Membrane Housing Pressure Vessel SS or PVC" template="product/widget/link/link_inline.phtml" id_path="product/188"}} | O-Ring for End Plug - Internal |
| {{widget type="Magento\Catalog\Block\Product\Widget\Link" anchor_text="3850.005" title="Plug for Membrane Housing Feed-End Permeate Port" template="product/widget/link/link_inline.phtml" id_path="product/232"}} | ½"Plug for Permeate Port on Feed End |
| {{widget type="Magento\Catalog\Block\Product\Widget\Link" anchor_text="H-C111DC" title="O-Ring Lubricant" template="product/widget/link/link_inline.phtml" id_path="product/488"}} | Lubricant for O-Rings, DOW Corning 111, 5 Oz |
