Name: 2.5x21 PVC Membrane Housing Pressure Vessel for RO Membrane
SKU: 1269992

Product Details ＋

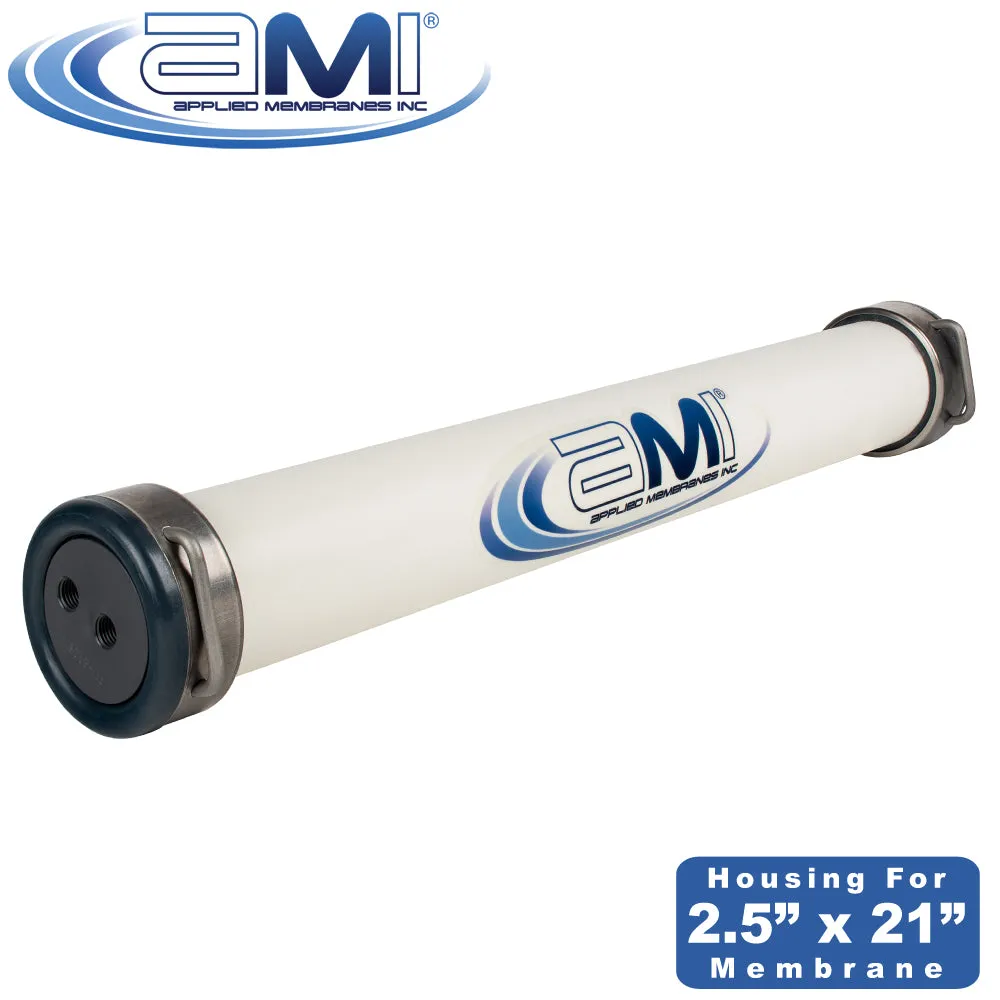

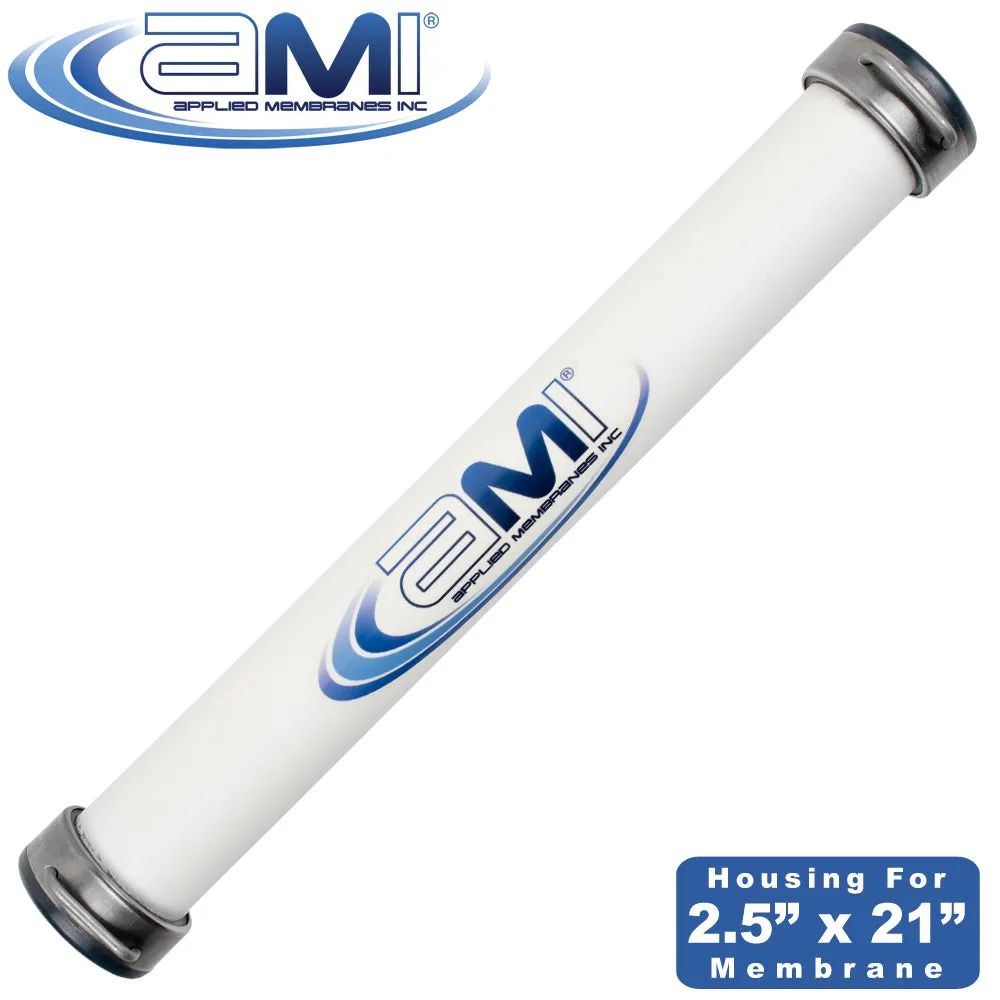

2.5 x 21 PVC Membrane Housing Pressure Vessel for RO Membranes

AMI PVC pressure vessels for housing 2.5" x 21" membrane elements are ideal for lower pressure membrane applications up to 200 PSI are designed for direct connection to AMI/Applied Membranes and FILMTEC/DOW style elements. The U-Pin style end closures are designed for ease of installing and replacing membrane elements, and the ¼" FNPT connections for ease of connection with no special fittings required. Each membrane housing is individually inspected for quality assurance.

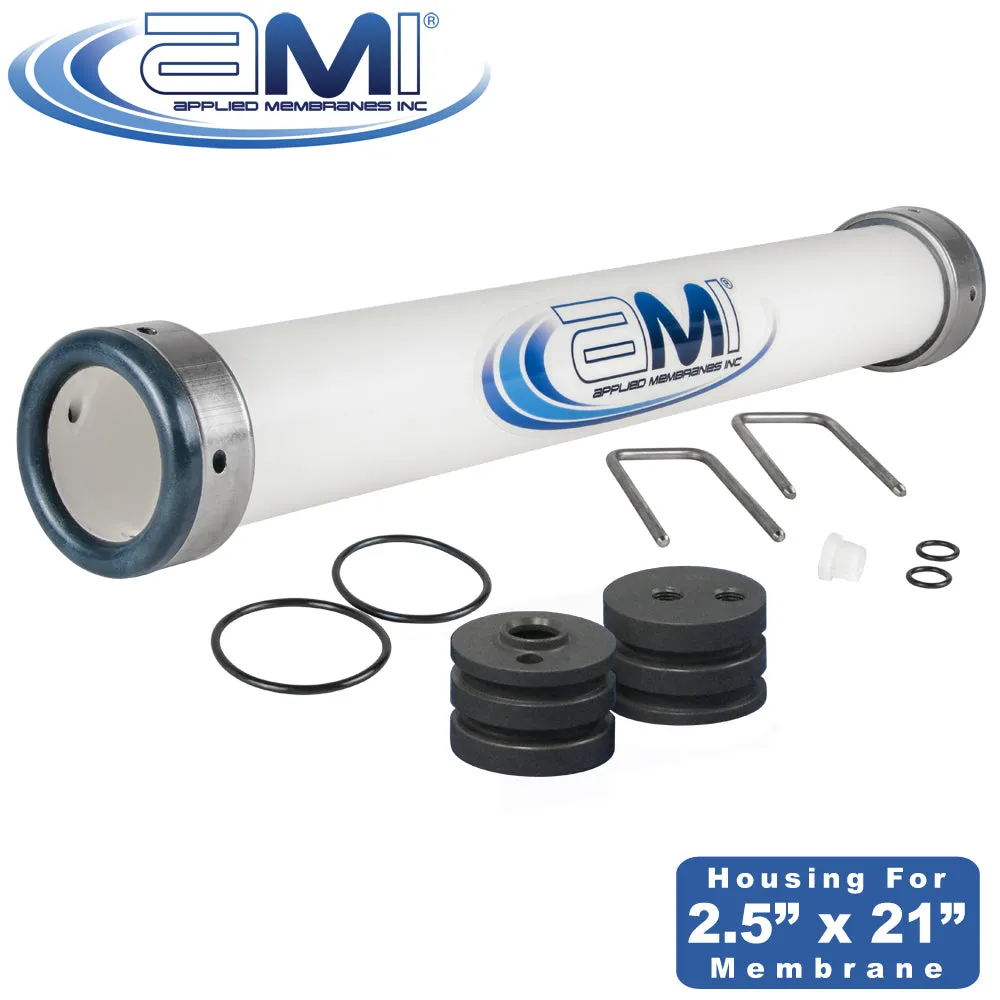

Each membrane housing is sold complete with End Plugs, U-Pins, Feed Plugs, and O-Rings. are sold separately.

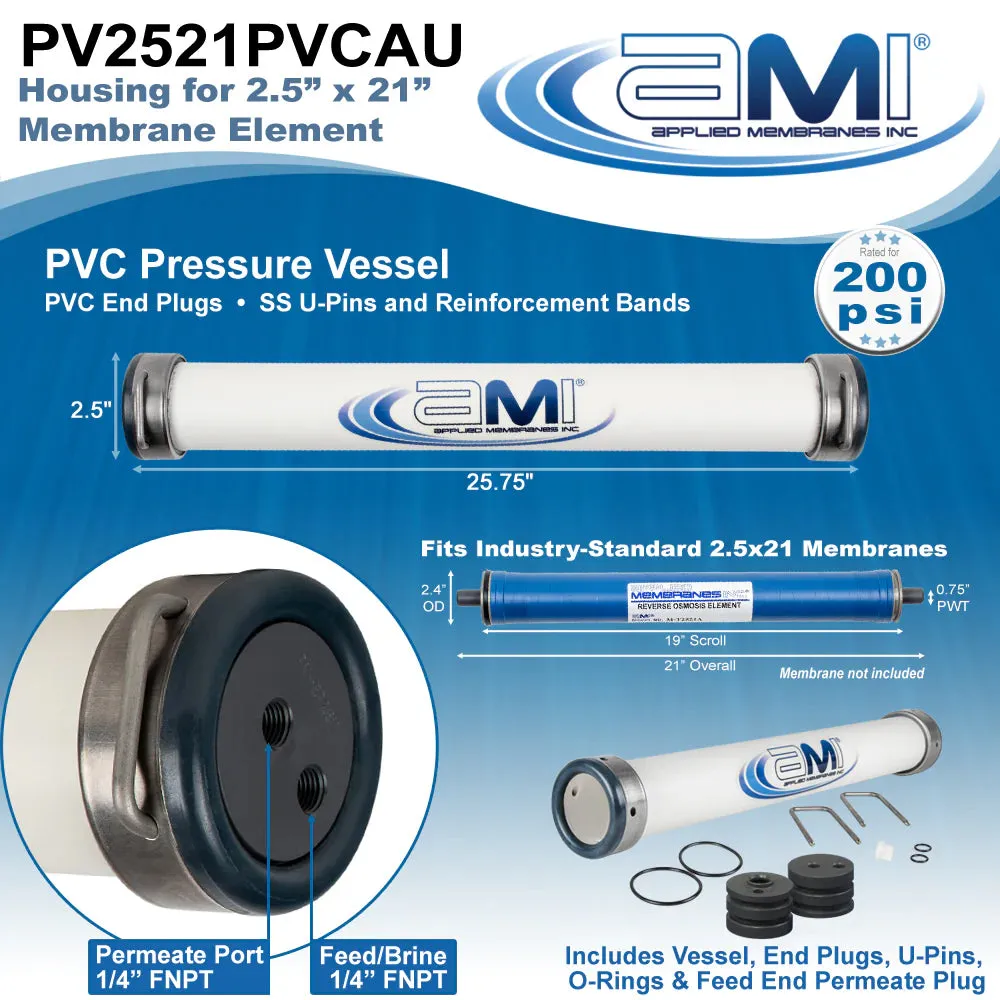

PVC Membrane Housing Specifications


AMI Part Number:	PV2521PVCAU
For Membrane Size:	2.5" x 21"
For Membrane Type:	AMI/Applied Membranes, DOW/FilmTec Style
Maximum Operating Pressure:	200 PSI (14 BAR) at 77°F (25°C)
Vessel Dimensions:	2.5" Dia. x 25.75" Length (6.5 cm Dia. x 65.4cm Length)
Feed, Brine, and Product Connections:	¼" FNPT
Configuration:	End Entry
End Closures:	U-Pin
Materials:	NSF approved Rigid PVC, PVC end plugs, PVC reinforcement cuffs and stainless steel cuff bands

Replacement Components for PVC Housings


	End Plug with O-Rings
	U-Pin
	O-Ring for End Plug - External
	O-Ring for End Plug - Internal
	Plug for Permeate Port on Feed End
	Lubricant for O-Rings, DOW Corning 111, 5 Oz

Warning: PVC pressure vessels are limited to a maximum pressure of 200 psi (14 BAR) at 77°F (25°C). Higher pressure, higher temperature or water hammer will lead to premature failure. It is highly recommended that when these conditions exist, a pressure switch or relief valve be installed to protect the vessel. Alternatively, you may consider a stainless steel or FRP vessel.
