Product Details
＋
TOTAL PERFORMANCE LINKABLE:
Full adjustment. Total Performance. Baja Designs XL Linkable Kit for the 2016-Current Toyota Tacoma (3rd Gen) was designed for enthusiasts looking to take charge with a light package that is completely customizable for their needs.
This kit includes 5 XL Sports, Links, vehicle-specific mounting brackets, a wiring harness, and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain. This kit is a turn-key LED system for the Toyota Tacoma owner that is looking to drastically improve the looks and performance of their truck.
TECH NOTE: This lightbar kit may interfere with a portion of the viewing window in a front-facing camera-equipped vehicle.
VEHICLE FITMENT:
2016-2023 Toyota Tacoma
SPECS:
- Lumens: 15,750 Utilizing 32 LEDs
- Wattage/Amps: 130W / 10A
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)

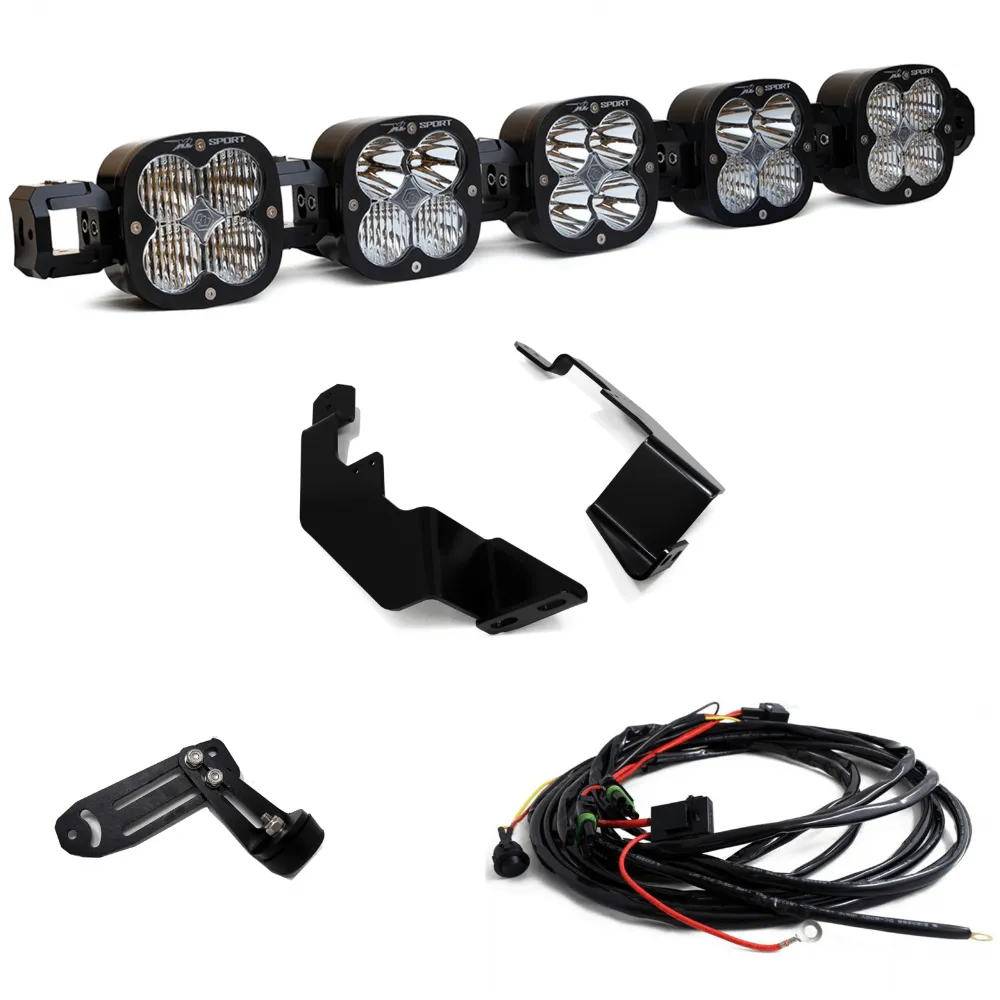

WHAT'S INCLUDED:
- x1 XL Sport Spot LED Light
- x2 XL Sport Driving/Combo LED Light
- x2 XL Sport Wide Cornering LED Light
- x5 XL Sport Rock Guards
- Toyota Tacoma Mounting Brackets
- Pre-load Kit
- Wiring Harness
BEAM PATTERNS:
- Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3)
- Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust, and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
- High-Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
