Furnace
|
- Double-layer steel structure with splitable cover
- High-purity Al2O3 fibrous insulation with Max. energy saving
- 300 mm length heating chamber with Constant temperature zone 100 mm with /- 5°C
- PID programmable temperature controller with /- 1°C accuracy
- Max working temperature: 1200oC @ < 1 hr, and 1100ºC continuous
-
is included
- The pressure sensor is built in to control chamber pressure automatically
- One MFC is built in to control the gas flow rate automatically
|
|
Airtight Flanges and Sliding
|
- 5" Dia. Water-cold stainless steel flange with silicone O-ring and valves for airtight heat treatment (Pic. 1)
- Right side flange will be driven by a dual compressive cylinder for closing or opening via electric valves
- A Digital pressure sensor is built-in to control pressure from 1 Pa to 200 KPa automatically
- Max. The vacuum level is dependent on the vacuum pump.
- One rotary vacuum pump is included, which can reach a 10 Pa vacuum.
|
|
Sample Stage ( Holder )
|

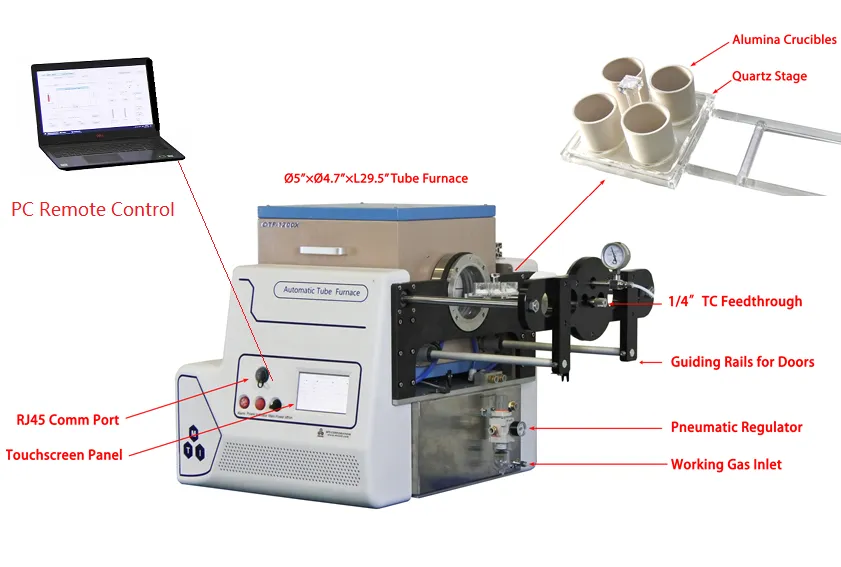

- ~ 100 x 100 mm sample stage with baffles are made of machinable alumina
- The sample stage is installed with a slidable flange on the right side
- One crucible holder ( made of alumina) with 4 holes is included to carry
-
are included for immediate use
- Customized sample holder and the crucible are available upon request
|
|
Control Panel & Software
|
- Touch screen control panel to program all parameters, including
- Chamber pressure ( 1-200 KPa )
- Gas flow rate ( 0 - 2000ml/minute )
- Purging cycles ( 0 - 3 times )
- Temperature program ( heating rate, dwell time, and cooling rate ) up to 30 segments
- The flange closes/opens
- RJ45 communication port is installed on the front panel to connect to the PC or wireless router to achieve remote control ( PC and router are available upon request at the extra cost )

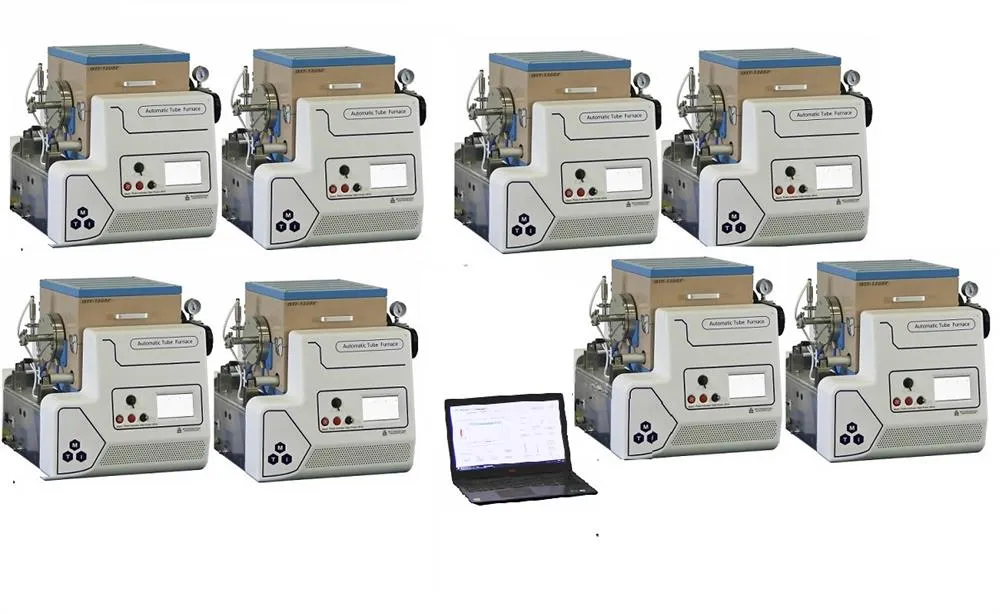

- PC operation software is included which can support 8 sets of furnace
- Communication code is opened to the existing customer to connect the device to robots for unmanned operation
|
|
Optional
|

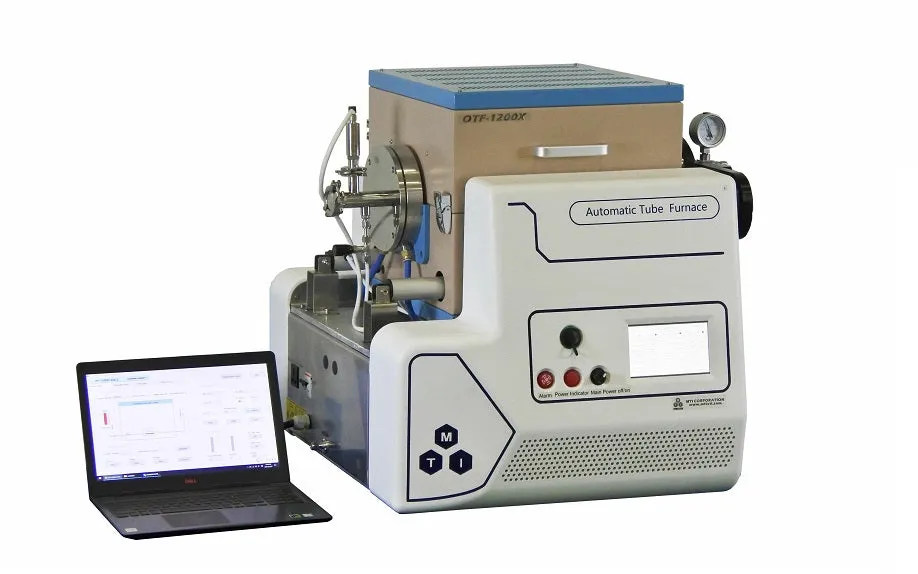

- Full automation with sample loading is optional via the integration with a robot arm. ( Pic. 1)

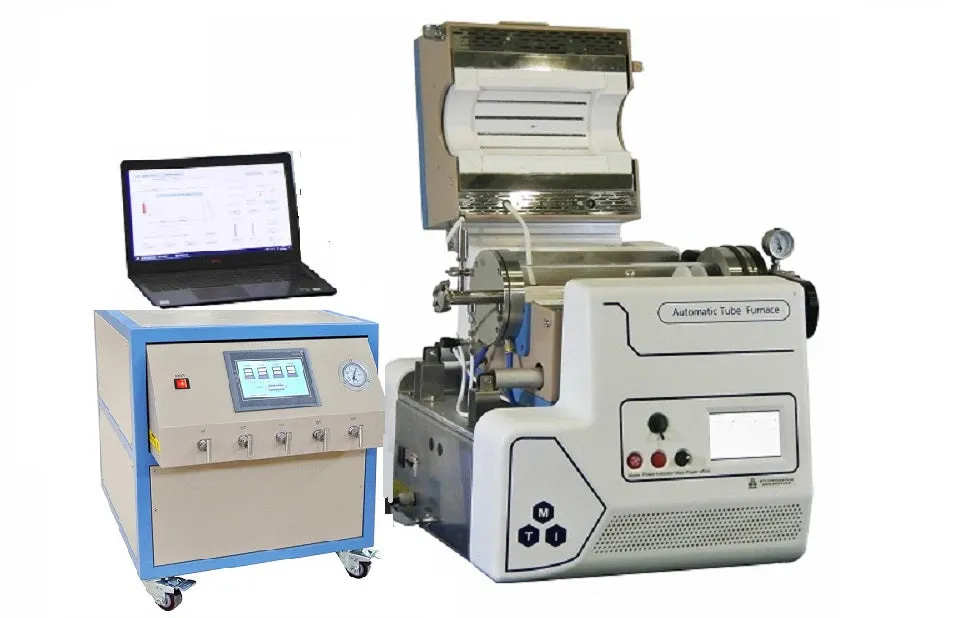

- Add a gas delivery system, the furnace can be upgraded to a fully automated CVD system (Pic. 2)
- The furnace can be integrated with mixing and pressing machines to achieve automated sintering processing
.Pic. 1 Pic. 2 Pic. 3
|
|
Utility requirement
|
- 220VAC /- 10%, 3KW, ( 20A breaker ) single-phase , power supply
- > 100 PSI compressive air source
- > 16 ml/min recirculating water
- You may click the link below to order a compressive air pump and water chiller separately
-
|
|
Warning
|

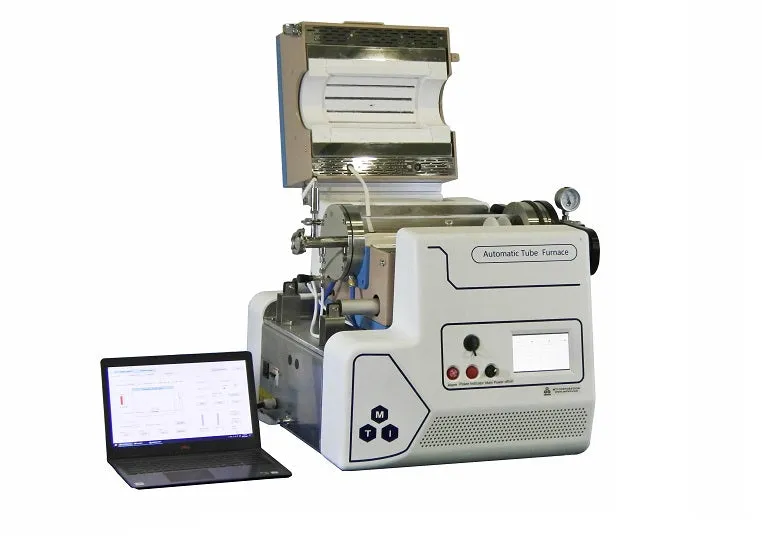

The furnace lid is relatively heavy. Open with care to avoid furnace flipping over.
|
|
Warranty
|
One-year limited warranty with lifetime support (Consumable parts such as processing tubes and o-rings are not covered by the warranty, please order replacements for related products below.)
|
|
Compliance
|
NRTL or CSA certification is available upon request at an extra cost.
|
|
Dimensions
and weight
|
-
Click the picture for more detail.
- Dimensions: 780mm(L) x 770mm(W) x 820mm(H)
- Weight:: ~ 160 Kg
|
|
Application Note
|
Click to order the for replacement.
|
